U.S. and Canada Domestic Price List August 1 2022
Residual Gas Analyzer Products
| Part Number | Picture | Description | Unit Price |
|---|---|---|---|
| XT100 |  | Extorr 100 AMU Residual Gas Analyzer with Vacuum Plus Software | $3,950.00 |
| XT100M | Extorr 100 AMU Residual Gas Analyzer with both Electron Multiplier and Faraday cup. Including Vacuum Plus Software | $5,650.00 | |
| XT200 | Extorr 200 AMU Residual Gas Analyzer with Vacuum Plus Software | $5,100.00 | |
| XT200M | Extorr 200 AMU Residual Gas Analyzer with both Electron Multiplier and Faraday cup. Including Vacuum Plus Software | $6,800.00 | |
| XT300 | Extorr 300 AMU Residual Gas Analyzer with Vacuum Plus Software | $6,250.00 | |
| XT300M | Extorr 300 AMU Residual Gas Analyzer with both Electron Multiplier and Faraday cup. Including Vacuum Plus Software | $7,950.00 | |
| XTIONIZER |  | Ionizer assembly for use with dual filaments (XTDUALFIL) | $250.00 |
| XTDUALFIL |  | Dual thoria coated iridium filament, must use with XTIONIZER | $150.00 |
| XTPR100 |  | XT100 Probe | $1,850.00 |
| XTPR100M | XT100M Probe | $2,900.00 | |
| XTPR200 | XT200 Probe | $2,400.00 | |
| XTPR200M | XT200M Probe | $3,450.00 | |
| XTPR300 | XT300 Probe | $3,000.00 | |
| XTPR300M | XT300M Probe | $4,000.00 | |
| XTPR100RF | XT100(M) Probe Refurbish | $600.00 | |
| XTPR200RF | XT200(M) Probe Refurbish | $650.00 | |
| XTPR300RF | XT300(M) Probe Refurbish | $700.00 | |
| XTCCU100 |  | Command and Control Unit for XT100 | $2,300.00 |
| XTCCU100M | Command and Control Unit for XT100M | $3,000.00 | |
| XTCCU200 | Command and Control Unit for XT200 | $2,900.00 | |
| XTCCU200M | Command and Control Unit for XT200M | $3,550.00 | |
| XTCCU300 | Command and Control Unit for XT300 | $3,450.00 | |
| XTCCU300M | Command and Control Unit for XT300M | $4,150.00 | |
| XTCCURF | Command and Control Unit for XTx00(M) Refurbish | $500.00 | |
| XTPSB000 |  | Power Supply Board for all XT models | $700.00 |
| XTPSB000EX | Power Supply Board for all XT models Exchange Price | $350.00 | |
| XTRFB100 |  | RF Board for XT100(M) | $700.00 |
| XTRFB100EX | RF Board for XT100(M) Exchange Price | $350.00 | |
| XTRFB200 | RF Board for XT200(M) | $1,000.00 | |
| XTRFB200EX | RF Board for XT200(M) Exchange Price | $350.00 | |
| XTRFB300 | RF Board for XT300(M) | $1,300.00 | |
| XTRFB300EX | RF Board for XT200(M) Exchange Price | $350.00 | |
| XTELB100 |  | Electrometer Board for XT100(M) | $700.00 |
| XTELB100EX | Electrometer Board for XT100(M) Exchange Price | $350.00 | |
| XTELB200 | Electrometer Board for XT200(M) | $1,000.00 | |
| XTELB200EX | Electrometer Board for XT200 Exchange Price | $350.00 | |
| XTELB300 | Electrometer Board for XT300(M) | $1,300.00 | |
| XTELB300EX | Electrometer Board for XT300(M) Exchange Price | $350.00 | |
| XTSHB001 |  | Power Supply shield board | $50.00 |
| XTSHB002 |  | RF Shield Board | $50.00 |
| XTPS24VDC |  | 24 Volt 50 Watt power supply, Input 100-240 VAC 50-60 Hz | $150.00 |
| XTPC |  | Power Cord for PS24VDC, North America, User must Install plug end for other Countries | $50.00 |
| XTTS000 |  | Thumb Screws to hold CCU to Analyzer | $50.00 |
| XTFT000 |  | Vacuum Feedthrough, with Pirani Gauge | $700.00 |

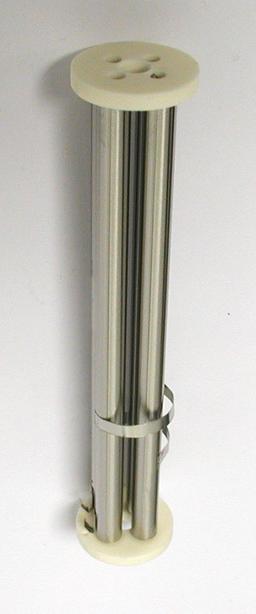

| XTMF100 |  | Mass Filter for XT100(M) | $600.00 |
| XTMF200 | Mass Filter for XT200(M) | $1,150.00 | |
| XTMF300 | Mass Filter for XT300(M) | $1,750.00 | |
| XTMF300EX | Mass Filter for XTx00(M) Exchange | $350.00 | |
| XTFRAME |  | Frame with Faraday Detector Assembly for XTx00(M) Analyzers | $500.00 |
| XTMULT |  | Electron Multiplier for XTx00M | $1,050.00 |
| XTMULTPS |  | Electron Multiplier High Voltage Power Supply for XTx00M | $700.00 |
| PF70 |  | 70 l/s dry pumping turbo system | $7,950.00 |
| VA1CAP16 |  | Valve inlet assembly with 1/16 inch fitting; single metal sealed on-off valve mounted on a 2 ¾ inch CF flange (DN 40 CF), vespel/graphite ferrule, and capillary plug | $750.00 |
| VA1CAP8 | (VA1CAP16) | Valve inlet assembly with 1/8 inch fitting; single metal sealed on-off valve mounted on a 2 ¾ inch CF flange (DN 40 CF), vespel/graphite ferrule, and capillary plug | $750.00 |
| VA1CAP4 | Valve inlet assembly with 1/4 inch fitting; single metal sealed on-off valve mounted on a 2 ¾ inch CF flange (DN 40 CF), vespel/graphite ferrule, and capillary plug | $750.00 | |
| VA1CAP3 | Valve inlet assembly with 3/16 inch fitting; single metal sealed on-off valve mounted on a 2 ¾ inch CF flange (DN 40 CF), vespel/graphite ferrule, and capillary plug | $750.00 | |
| VA2CAP1616 |  | Valve inlet assembly with 2 x 1/16 inch fittings; 2 metal sealed on-off valves mounted on 2 ¾ inch CF flange (DN 40 CF) | $1,050.00 |
| VA2CAP168 | (VA2CAP1616) | Valve inlet assembly with 1/16 inch fitting and 1/8 inch fitting; 2 metal sealed on-off valves mounted on 2 ¾ inch CF flange (DN 40 CF) | $1,050.00 |
| VA2CAP164 | Valve inlet assembly with 1/16 inch fitting and 1/4 inch fitting; 2 metal sealed on-off valves mounted on 2 ¾ inch CF flange (DN 40 CF) | $1,050.00 | |
| VA2CAP163 | Valve inlet assembly with 1/16 inch fitting and 3/16 inch fitting; 2 metal sealed on-off valves mounted on 2 ¾ inch CF flange (DN 40 CF) | $1,050.00 | |
| VA2CAP88 | Valve inlet assembly with 2 x 1/8 inch fitting; 2 metal sealed on-off valves mounted on 2 ¾ inch CF flange (DN 40 CF) | $1,050.00 | |
| VA2CAP84 | Valve inlet assembly with 1/8 inch fitting and 1/4 inch fitting; 2 metal sealed on-off valves mounted on 2 ¾ inch CF flange (DN 40 CF) | $1,050.00 | |
| VA2CAP83 | Valve inlet assembly with 1/8 inch fitting and 3/16 inch fitting; 2 metal sealed on-off valves mounted on 2 ¾ inch CF flange (DN 40 CF) | $1,050.00 | |
| VA2CAP44 | Valve inlet assembly with 2 x 1/4 inch fitting; 2 metal sealed on-off valves mounted on 2 ¾ inch CF flange (DN 40 CF) | $1,050.00 | |
| VA2CAP43 | Valve inlet assembly with 1/4 inch fitting and 3/16 inch fitting; 2 metal sealed on-off valves mounted on 2 ¾ inch CF flange (DN 40 CF) | $1,050.00 | |
| VA2CAP33 | Valve inlet assembly with 2 x 3/16 inch fittings, 2 metal sealed on-off valves mounted on 2 ¾ inch CF flange (DN 40 CF) | $1,050.00 | |
| MAN450C |  | Probe manifold with 2 x 2 ¾ inch CF flanges (DN 40 CF) and 4.50 inch CF flange (DN 63 CF) for pump, mounting hardware, and CF copper gasket (for 2 ¾ inch CF flange) | $700.00 |
| MAN63S |  | Probe manifold with 2 x 2 ¾ inch CF flanges (DN 40 CF) for inlet probe, 63 ISO flange for pump, mounting hardware, and CF copper gasket (for 2.75 inch CF flange) | $700.00 |
| MAN40S | Probe manifold with 2 x 2 ¾ inch CF flanges (DN 40 CF) and 40 ISO for pump, mounting hardware, and CF copper gasket (for 2.75 inch CF flange) | $700.00 | |
| MAN40K | Probe manifold with 2 x 2 ¾ inch CF flanges (DN 40 CF) and DN 40 KF for pump, mounting hardware, and CF copper gasket (for 2.75 inch CF flange) | $700.00 | |
| N700 |  | 2.75 inch OD CF flanges (DN 40 CF), 7.50 inches OAL, 1.75 inches OD | $150.00 |
| N500 |  | 2.75 inch OD CF flanges (DN 40 CF), 5.50 inches OAL, 1.75 inches OD | $150.00 |
| N250 |  | 2.75 inch OD CF flanges (DN 40 CF), 2.50 inches OAL, 1.75 inches OD | $150.00 |
| AD275C40K7L175 |  | Adapter with 2.75 inch OD CF flange (DN 40 CF) to DN 40 KF flange, 7.75 inches OAL, 1.75 inches OD | $200.00 |
| AD275C40K2L175 |  | Adapter with 2.75 inch OD CF flange (DN 40 CF) to DN 40 KF flange, 2.50 inches OAL, 1.75 inches OD | $200.00 |
| CGSD25SDM1 |  | Silica glass capillary tubing with 120 µm OD and 25 µm ID, 1 meter in length | $150.00 |
| CGSD40SDM2 | Silica glass capillary tubing with 240 µm OD and 40 µm ID, 2 meters in length | $150.00 | |
| CGSD50SDM3 | Silica glass capillary tubing with 280 µm OD and 50 µm ID, 3 meters in length | $150.00 | |
| CS16SD5F5 |  | 304 stainless steel capillary tubing with 1/16 inch OD and .00500 inch ID, 5 feet in length | $150.00 |
| CS16SD10F5 | 304 stainless steel capillary tubing with 1/16 inch OD and .0100 inch ID, 5 feet in length | $150.00 | |
| CS16SD20F5 | 304 stainless steel capillary tubing with 1/16 inch OD and .0200 inch ID, 5 feet in length | $150.00 | |
| CS16SD30F5 | 304 stainless steel capillary tubing with 1/16 inch OD and .0300 inch ID, 5 feet in length | $150.00 | |
| CS8SD69F6 | 304 stainless steel capillary tubing with 1/8 inch OD and .0690 inch ID, 6 feet in length | $150.00 | |
| CS4SD120F6 | 304 stainless steel capillary tubing with 3/16 inch OD and .118 inch ID, 6 feet in length | $150.00 | |
| CS4SD210F6 | 304 stainless steel capillary tubing with 1/4 inch OD and .210 inch ID, 6 feet in length | $150.00 | |
| AD4T16SW |  | An adapter to connect a 1/16 inch Swagelok type fitting to a chamber | $50.00 |
| AD4T8SW | (AD4T16SW) | An adapter to connect a 1/8 inch Swagelok type fitting to a chamber | $50.00 |
| AD4T4SW | An adapter to connect a 1/4 inch Swagelok type fitting to a chamber | $50.00 | |
| AD4T3SW | An adapter to connect a 3/16 inch Swagelok type fitting to a chamber | $50.00 | |
| VASS4HVCR |  | Swagelok Valve with VCR fittings | $400.00 |
| VAHC150 |  | High conductance valve assembly | $700.00 |
| VAHCK150V1 |  | High Conductance Valve with 1 Bellows-Sealed Swagelok Bypass valve, and 2 ConFlat to VCR adapters with 2 arms each (one arm plugged), twelve ¼-28 nuts and washers, 1 flow control orifice for Bypass Valve, and 2 copper gaskets | $2,050.00 |
| VAHCK150V2 | High Conductance Valve with 2 Bellows-Sealed Swagelok Bypass valves, and 2 ConFlat to VCR adapters with 2 arms each, twelve ¼-28 nuts and washers, 2 flow control orifices for Bypass Valves, and 2 copper gaskets | $2,550.00 | |
| ADDSCFVCR2V2 |  | 1 double sided DN40CF ConFlat to 2 VCR adapter arms, 12 x 1/4- 28 nuts and washers, and 2 copper gaskets | $400.00 |
