Series

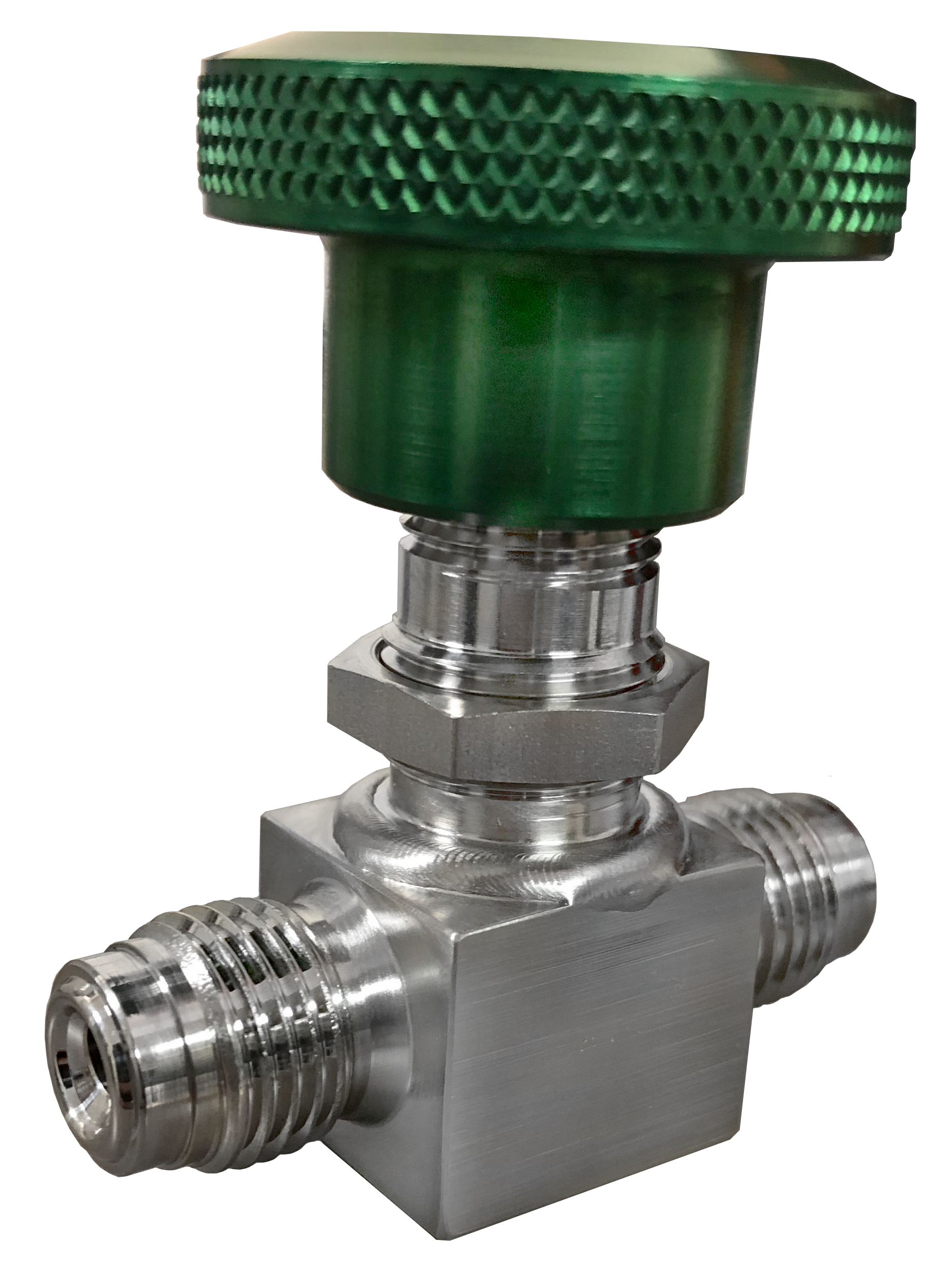

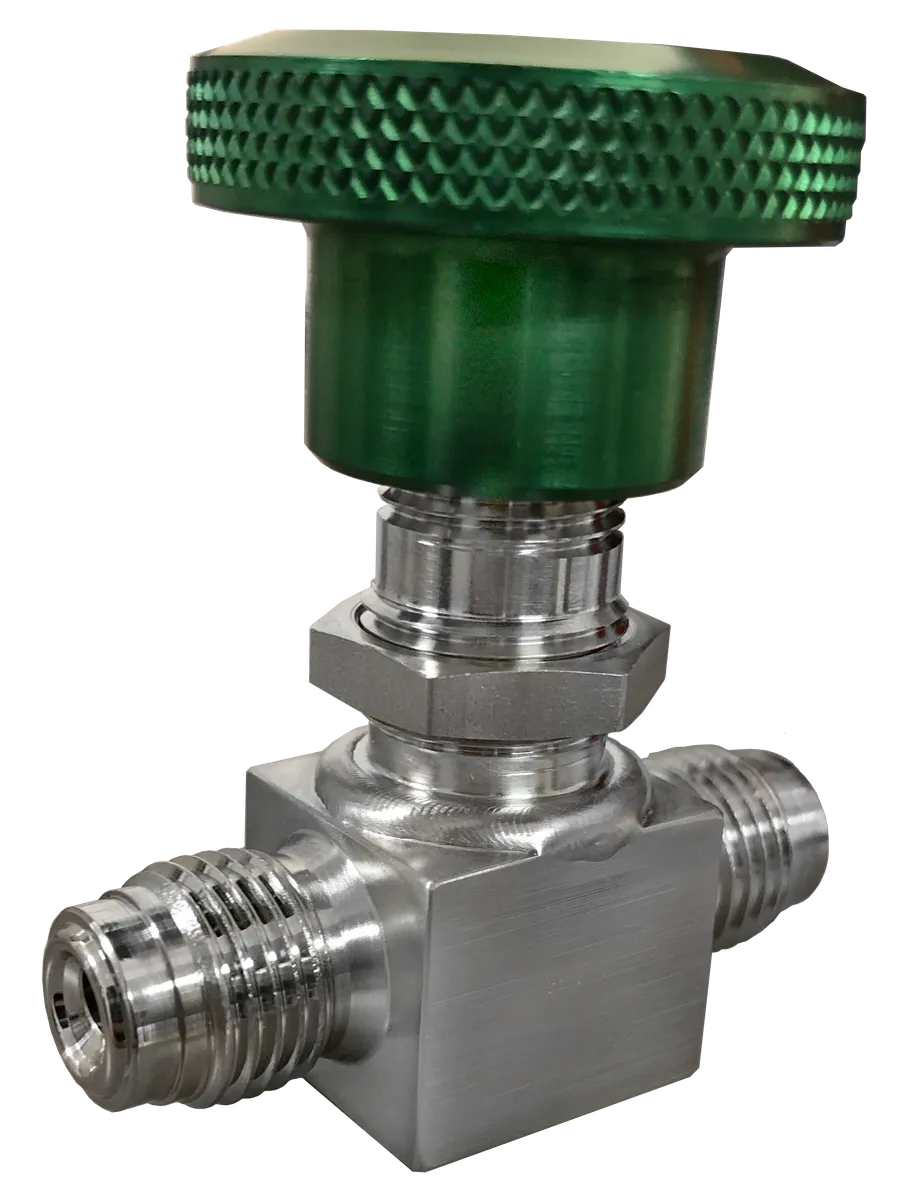

XT Swagelok Bellows-Sealed Valve with VCR Fittings
Swagelok bellows-sealed valve with VCR fittings for use with Extorr vacuum parts and in other vacuum systems and applications.
Body Material
316 Stainless Steel
Bellows Material
321 Stainless Steel
Connection Size
¼ in
Ordering Information
Select configuration| Part Number | Configuration | Domestic Price | ||
|---|---|---|---|---|
 | VASS4HVCR | Swagelok bellows-sealed valve with VCR fittings for use with Extorr vacuum parts and in other vacuum systems and applications. | $400 |
Specifications
Specifications
Body Material
316 Stainless Steel
Bellows Material
321 Stainless Steel
Connection Size
¼ in
Connection Type
Face Seal (Metal Gasket) Male VCR
Max Temperature Rating
315 °C
Stem Tip Material
S17400 Stainless Steel
