Series

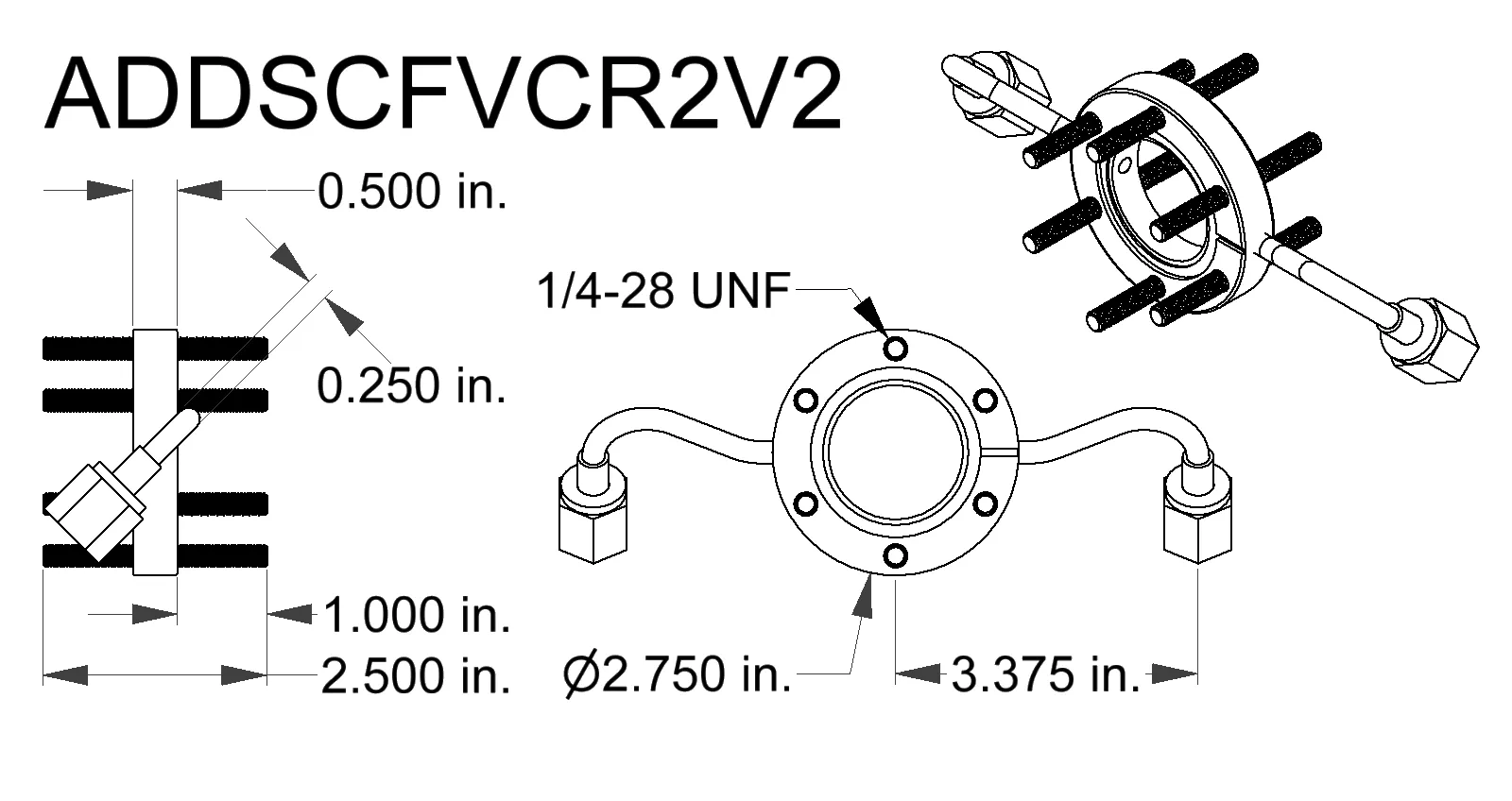

XT ConFlat to VCR Adapter
Adapter used in the VAHCK150V1 and VAHCK150V2 valve assembly. Adapter flange is a double-sided ConFlat flange.
Body Material
Stainless Steel
ConFlat Flange Measurements
2-3/4 in. OD with ¼-28 studs in the flange
VCR Connection Size
¼ in
Resources
Ordering Information
Select configuration| Part Number | Configuration | Domestic Price | ||
|---|---|---|---|---|
 | ADDSCFVCR2V2 | 1 double sided DN40CF ConFlat to 2 VCR adapter arms, 12 x 1/4- 28 nuts and washers, and 2 copper gaskets | $400 |
Specifications
Specifications
Body Material
Stainless Steel
Flange Material
Stainless Steel
VCR Connection Size
¼ in
VCR Connection Type
Face Seal (Metal Gasket) Female VCR
Max Temperature Rating
315 °C
ConFlat Flange Measurements
2-3/4 in. OD with ¼-28 studs in the flange
