Series

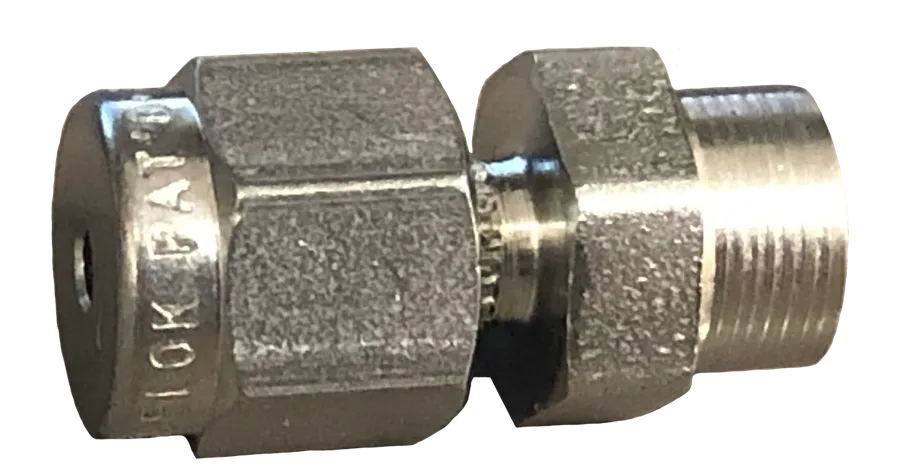

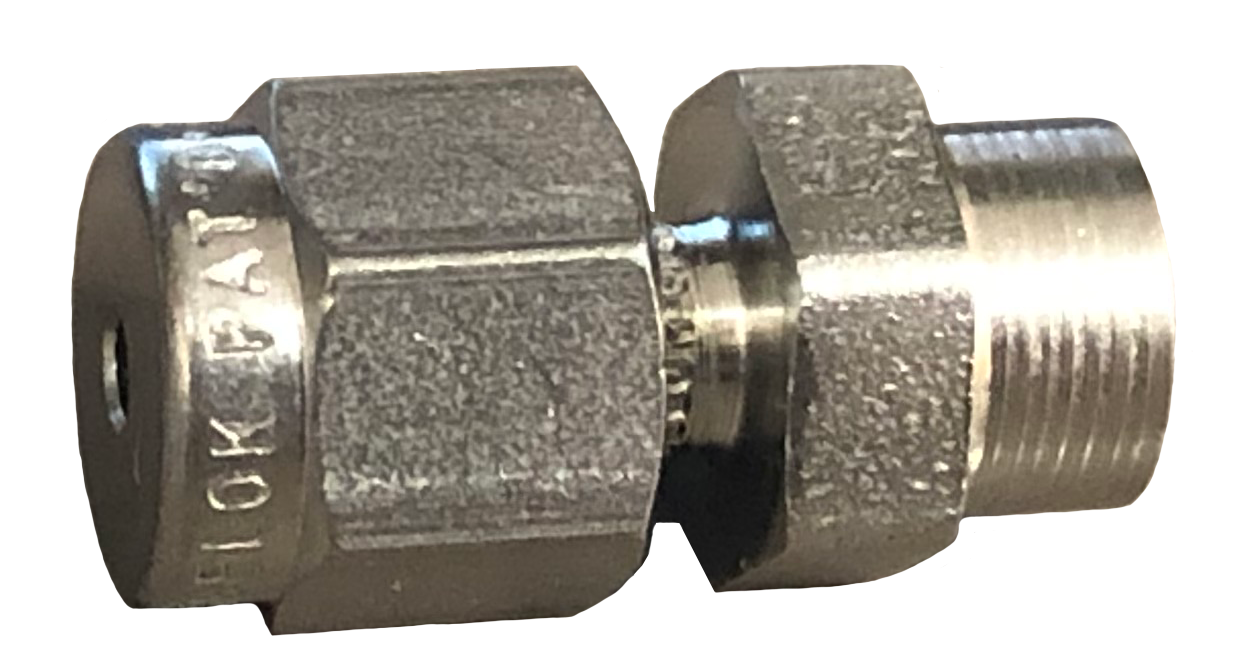

Weld Adapters for Capillary Tubing
Adapters intended to aid in the connection of a sampling inlet capillary to a customer’s chamber. Drill ¼ inch hole and weld into chamber.
Capillary Fitting
Swagelok type nut and ferrule with 1/4, 3/16, 1/8, and 1/16 inch OD options

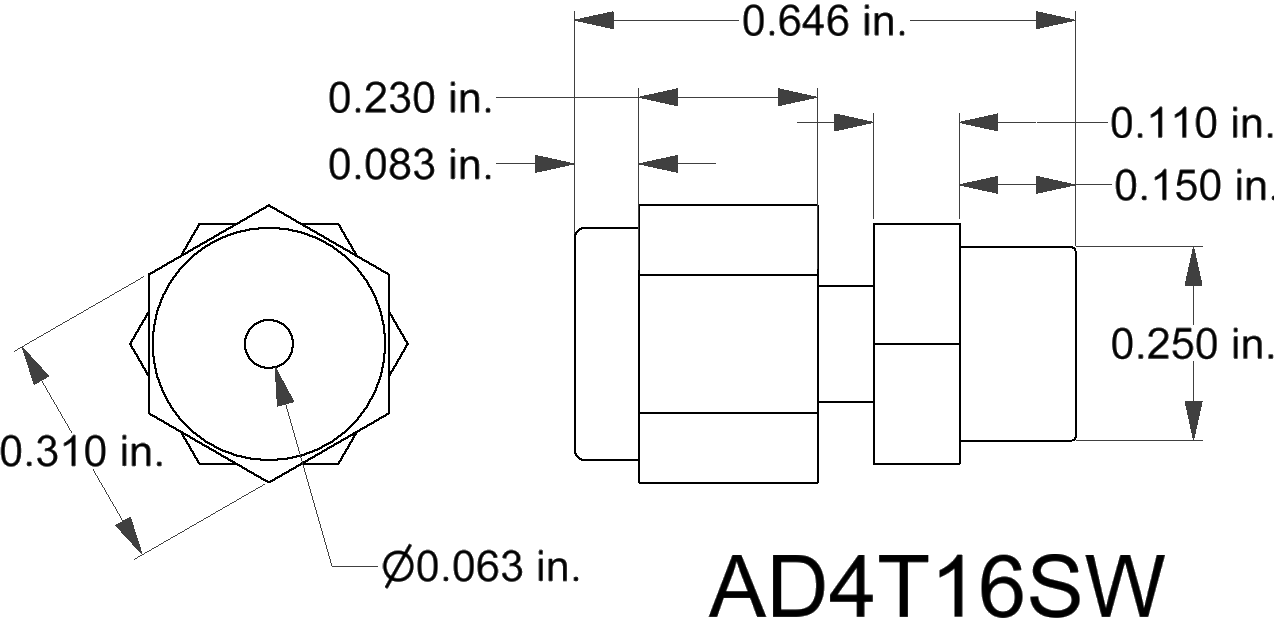

Weld Protrusion
1/4 inch OD and .150 inch in length
Ordering Information
Select configuration| Part Number | Configuration | Domestic Price | ||
|---|---|---|---|---|
 | AD4T16SW | An adapter to connect a 1/16 inch Swagelok type fitting to a chamber | $50 | |
| AD4T8SW | An adapter to connect a 1/8 inch Swagelok type fitting to a chamber | $50 | ||
| AD4T4SW | An adapter to connect a 1/4 inch Swagelok type fitting to a chamber | $50 | ||
| AD4T3SW | An adapter to connect a 3/16 inch Swagelok type fitting to a chamber | $50 |
Specifications
Specifications
Capillary Fitting
Swagelok type nut and ferrule with 1/4, 3/16, 1/8, and 1/16 inch OD options
Weld Protrusion
1/4 inch OD and .150 inch in length
