XT Series Residual Gas Analyzer parts list
Systems, spares, consumables and refurbishments — 43 parts
XT Series Residual Gas Analyzer
| Part Number | Configuration | Domestic Price | ||
|---|---|---|---|---|
 | XT100 | 100 amu, Faraday cup | $4,350 | |
| XT100M | 100 amu, Faraday cup and Electron Multiplier | $6,250 | |
| XT200 | 200 amu, Faraday cup | $5,650 | |
| XT200M | 200 amu, Faraday cup and Electron Multiplier | $7,500 | |
| XT300 | 300 amu, Faraday cup | $6,900 | |
| XT300M | 300 amu, Faraday cup and Electron Multiplier | $8,750 |
XT RGA Filament
Dual thoria coated iridium filament, must use with XTIONIZER| Part Number | Configuration | Domestic Price | ||
|---|---|---|---|---|
 | XTDUALFIL | Dual thoria coated iridium filament, XT and XTP series. Must use with XTIONIZER | $300 |
XT Ionizer
Ionizer assembly for use with dual filaments (XTDUALFIL)| Part Number | Configuration | Domestic Price | ||
|---|---|---|---|---|
 | XTIONIZER | Ionizer assembly for use with dual filaments (XTDUALFIL), XT and XTP series | $500 |

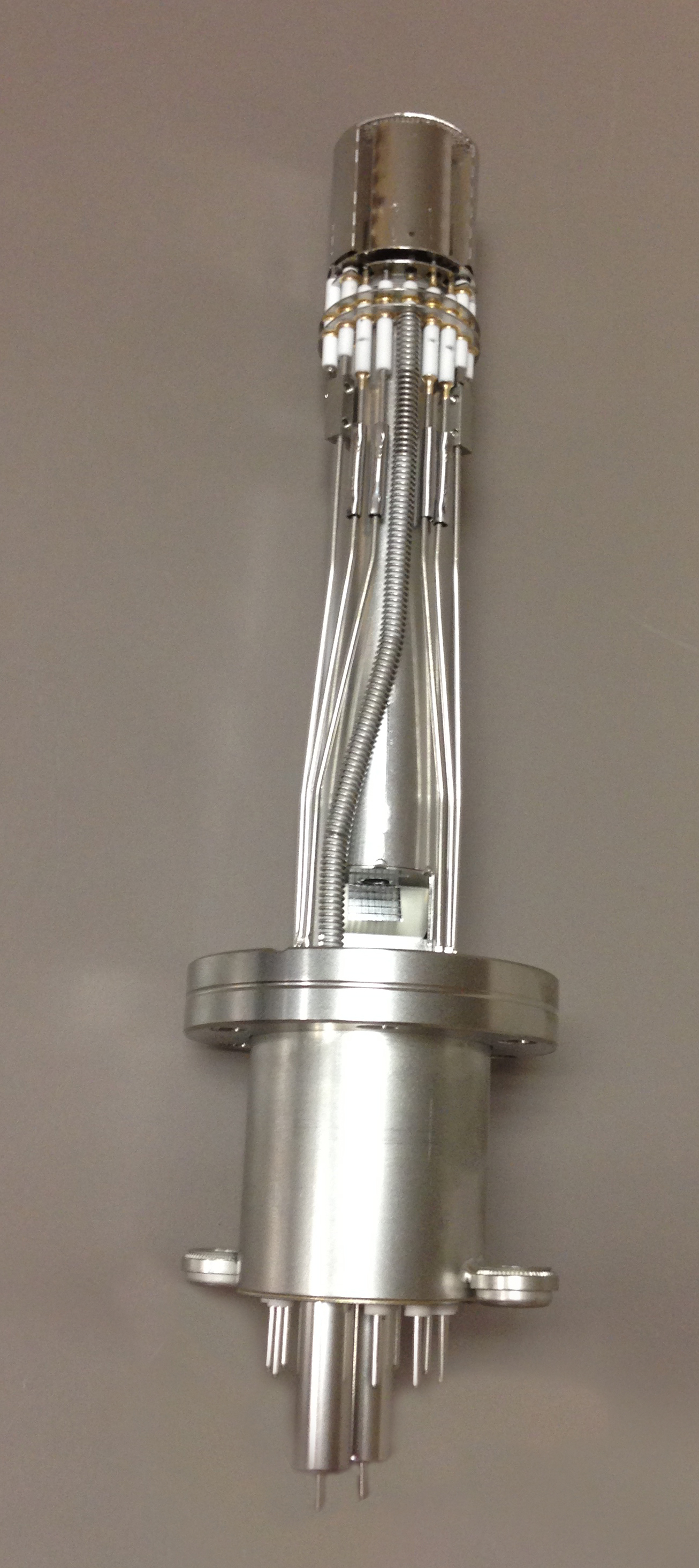

XT RGA Probe
XT Series RGA Probe| Part Number | Configuration | Domestic Price | ||
|---|---|---|---|---|
 | XTPR100 | 100 amu probe for XT100 and XTP-100 | $2,050 | |
| XTPR100M | 100 amu probe for XT100M and XTP-100M | $3,200 | |
| XTPR200 | 200 amu probe for XT200 and XTP-200 | $2,650 | |
| XTPR200M | 200 amu probe for XT200M and XTP-200M | $3,800 | |
| XTPR300 | 300 amu probe for XT300 and XTP-300 | $3,350 | |
| XTPR300M | 300 amu probe for XT300M and XTP-300M | $4,450 | |
| XTPR100RF | Probe refurbishment for XT100(M) and XTP-100(M) | $900 | |
| XTPR200RF | Probe refurbishment for XT200(M) and XTP-200(M) | $950 | |
| XTPR300RF | Probe refurbishment for XT300(M) and XTP-300(M) | $1,000 |

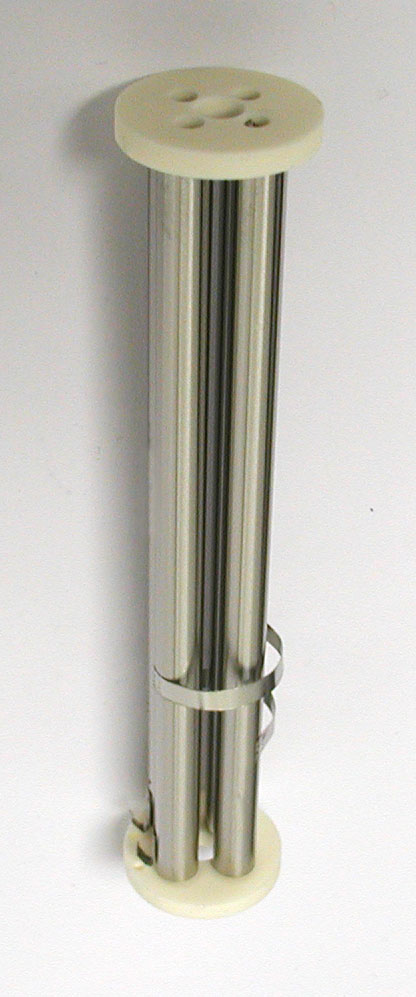

XT Mass Filter
XT Series RGA Mass Filter| Part Number | Configuration | Domestic Price | ||
|---|---|---|---|---|
 | XTMF100 | Mass filter for XT100(M) and XTP-100(M) | $600 | |
| XTMF200 | Mass filter for XT200(M) and XTP-200(M) | $1,150 | |
| XTMF300 | Mass filter for XT300(M) and XTP-300(M) | $1,750 |

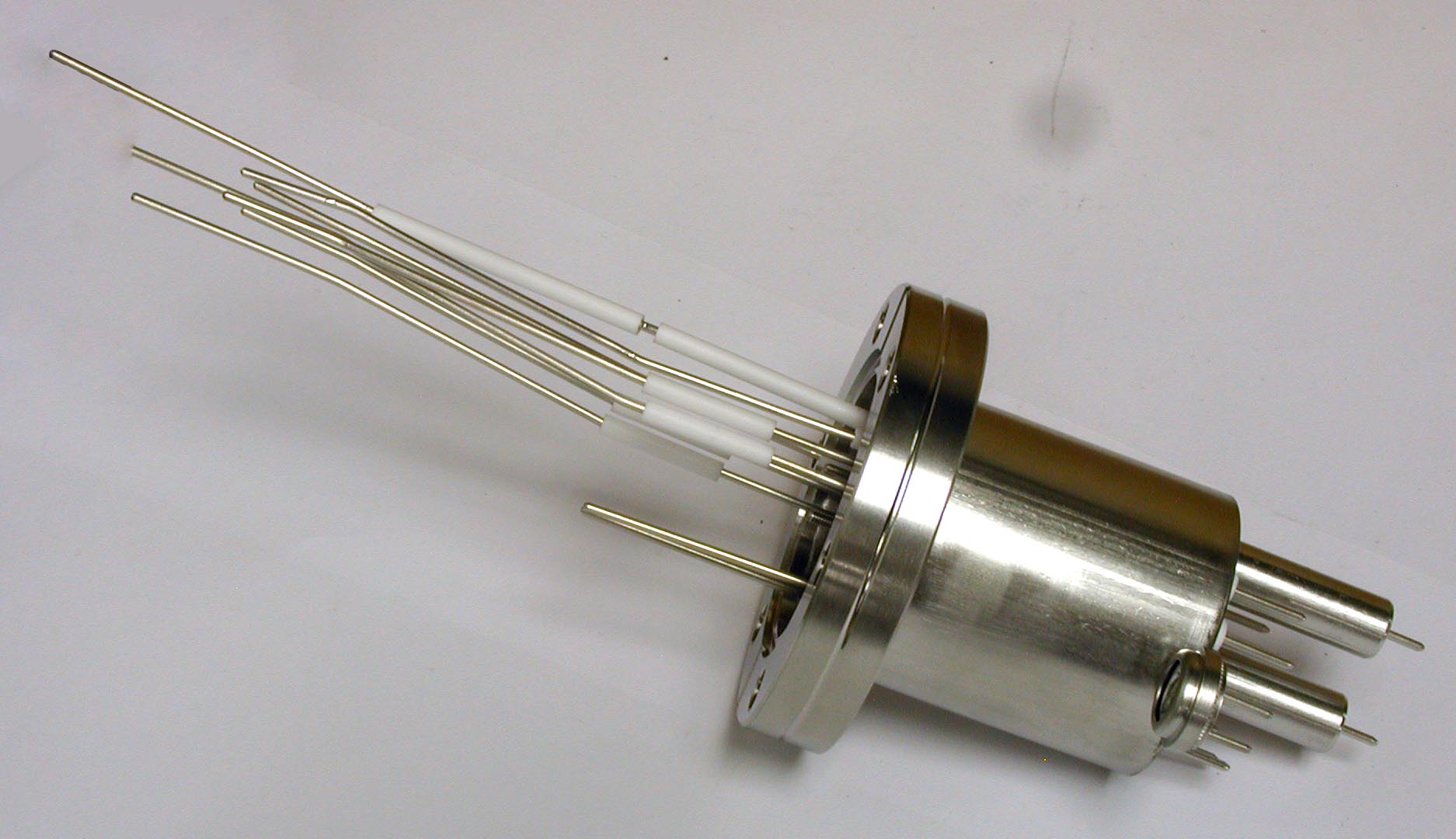

XT RGA Feedthrough
Vacuum Feedthrough, with Pirani Gauge| Part Number | Configuration | Domestic Price | ||
|---|---|---|---|---|
 | XTFT000 | Vacuum feedthrough with Pirani gauge, XT and XTP series | $800 |
XT Multiplier
Electron Multiplier for XTx00M| Part Number | Configuration | Domestic Price | ||
|---|---|---|---|---|
 | XTMULT | Electron multiplier for XT and XTP series, M models | $1,600 |

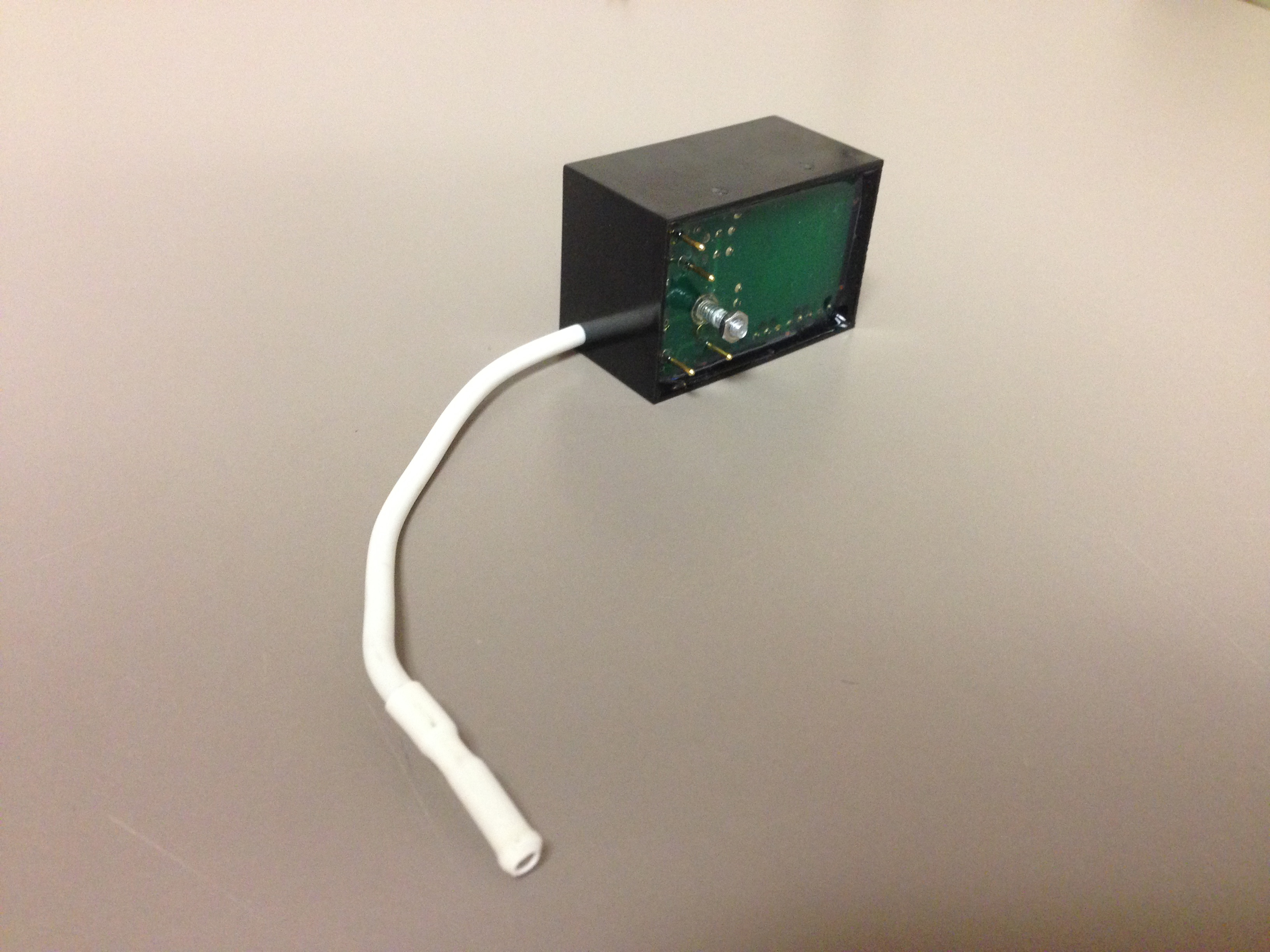

XT Multiplier Power Supply
Electron Multiplier High Voltage Power Supply for XTx00M| Part Number | Configuration | Domestic Price | ||
|---|---|---|---|---|
 | XTMULTPS | Electron multiplier high voltage power supply for XTx00M | $800 |

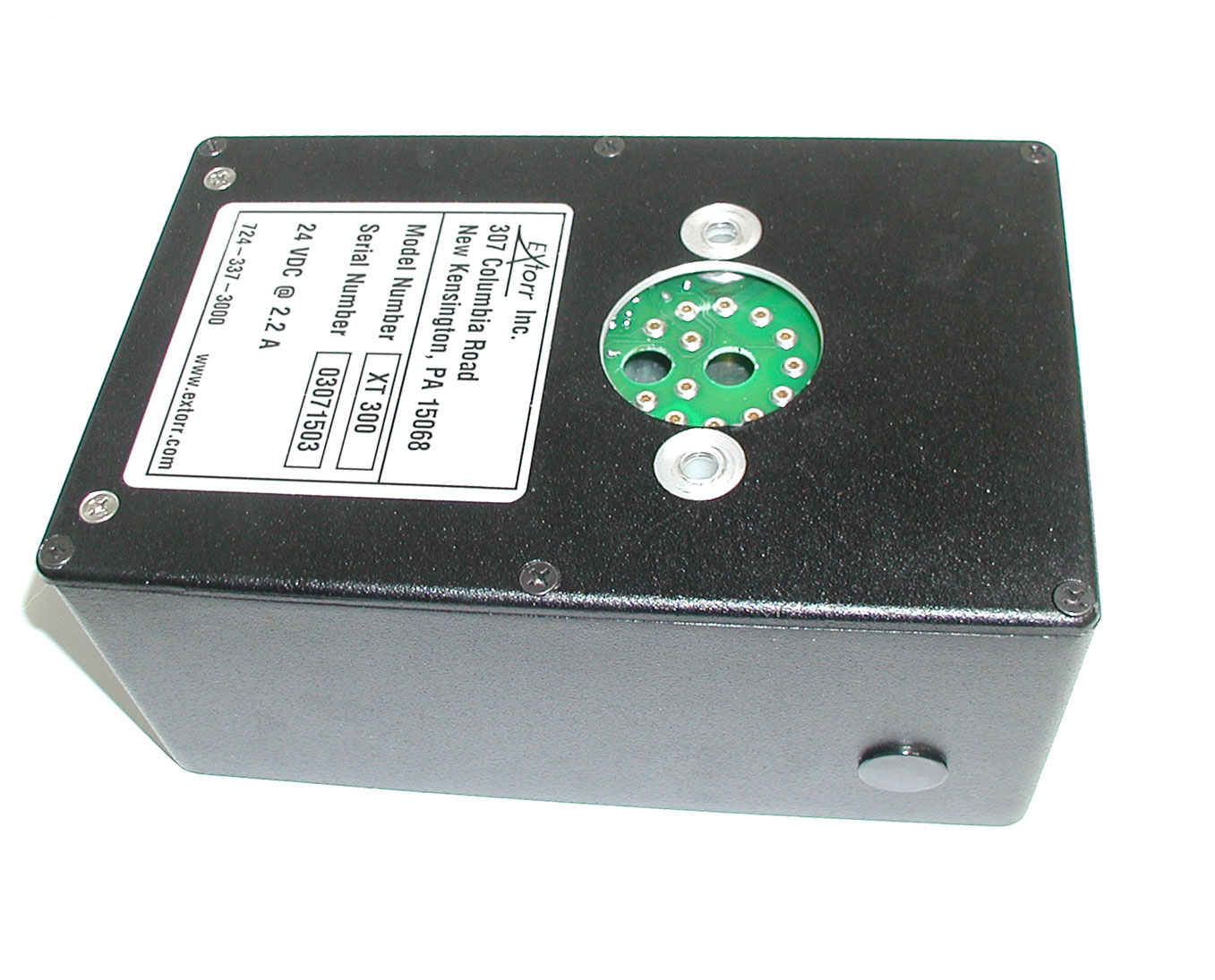

XT RGA CCU
XT Series RGA Command and Control Unit| Part Number | Configuration | Domestic Price | ||
|---|---|---|---|---|
 | XTCCU100 | Command and Control Unit for XT100 | $2,550 | |
| XTCCU100M | Command and Control Unit for XT100M | $3,350 | |
| XTCCU200 | Command and Control Unit for XT200 | $3,200 | |
| XTCCU200M | Command and Control Unit for XT200M | $3,950 | |
| XTCCU300 | Command and Control Unit for XT300 | $3,800 | |
| XTCCU300M | Command and Control Unit for XT300M | $4,600 | |
| XTCCURF | XTx00(M) Command and Control Unit Refurbishment | $800 |
XT RF Board
XT Series RGA RF Board| Part Number | Configuration | Domestic Price | ||
|---|---|---|---|---|
 | XTRFB100 | RF Board for XT100(M) | $900 | |
| XTRFB200 | RF Board for XT200(M) | $1,000 | |
| XTRFB300 | RF Board for XT300(M) | $1,300 |
XT EL Board
XT Series RGA Electrometer Board| Part Number | Configuration | Domestic Price | ||
|---|---|---|---|---|
 | XTELB100 | Electrometer Board for XT100(M) | $900 | |
| XTELB200 | Electrometer Board for XT200(M) | $1,000 | |
| XTELB300 | Electrometer Board for XT300(M) | $1,300 |
XT Power Supply Board
Power Supply Board for all XT models| Part Number | Configuration | Domestic Price | ||
|---|---|---|---|---|
 | XTPSB000 | Power Supply Board for all XT models | $850 |

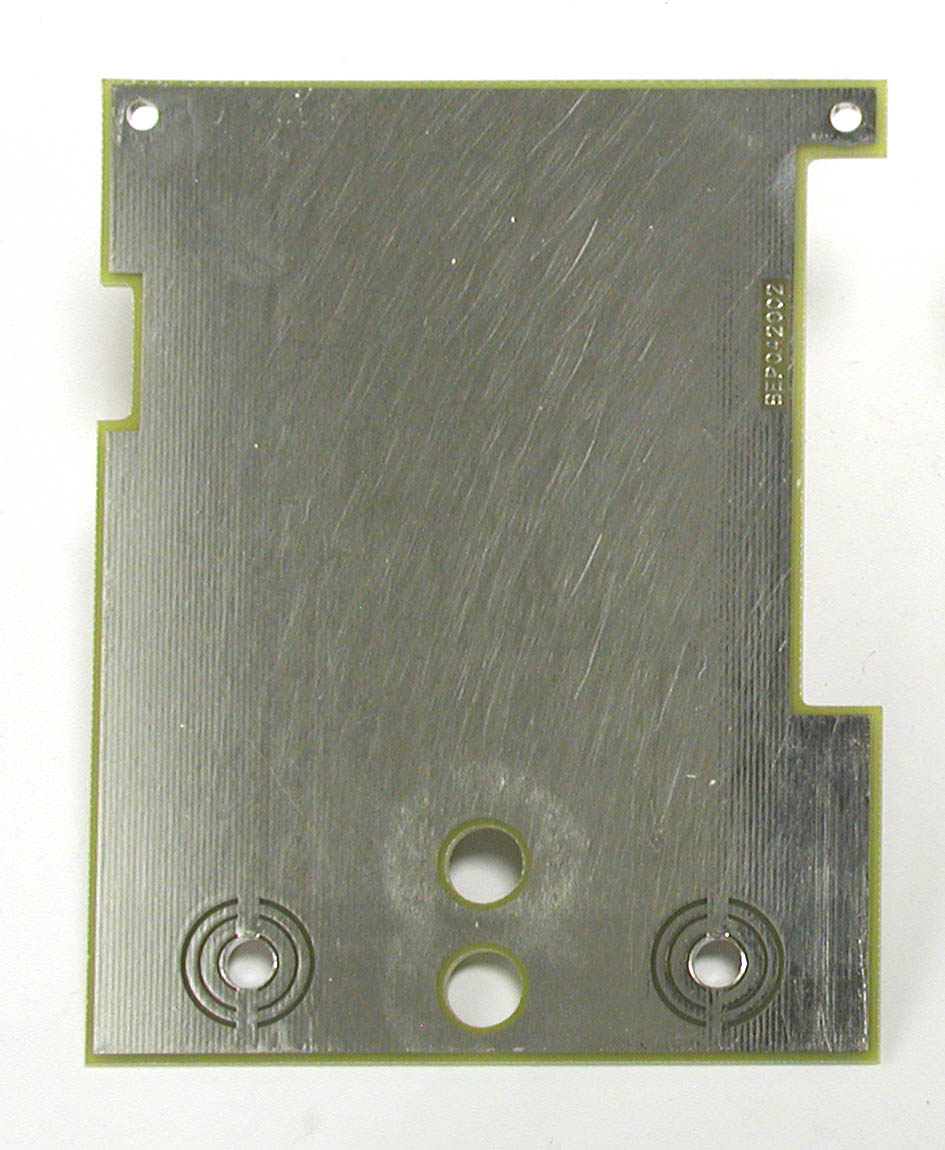

XT RF Shield Board
RF Shield Board| Part Number | Configuration | Domestic Price | ||
|---|---|---|---|---|
 | XTSHB002 | RF shield board, XT and XTP series | $100 |

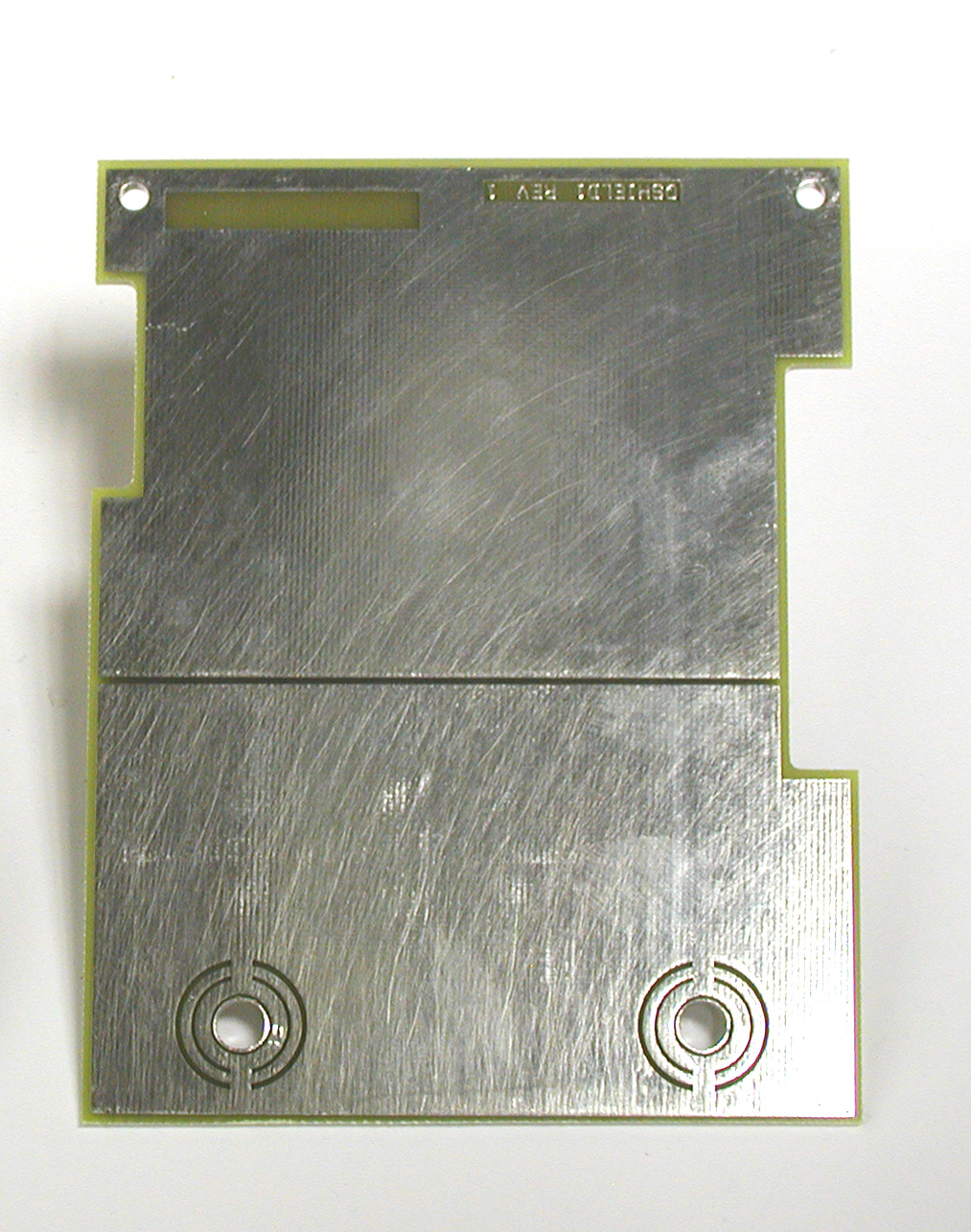

XT Power Supply Shield Board
XT Series RGA Power Supply shield board| Part Number | Configuration | Domestic Price | ||
|---|---|---|---|---|
 | XTSHB001 | Power supply shield board, XT and XTP series | $100 |

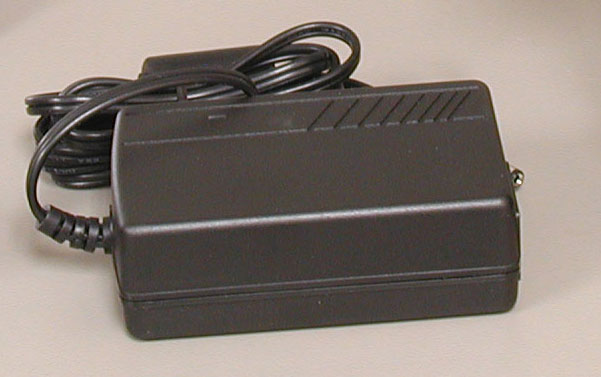

XT 24V Power Supply
24 Volt 50 Watt power supply, Input 100-240 VAC 50-60 Hz| Part Number | Configuration | Domestic Price | ||
|---|---|---|---|---|
 | XTPS24VDC | 24 Volt 50 Watt power supply, input 100-240 VAC 50-60 Hz, XT and XTP series | $150 |

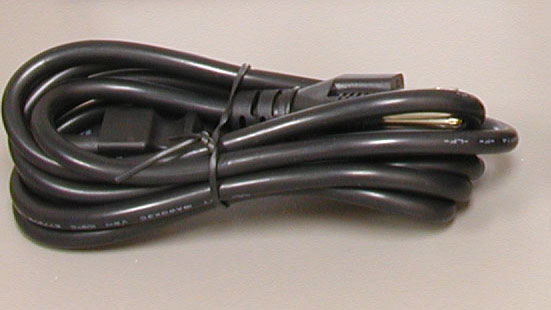

Power Cord for PS24VDC, NA
Power Cord for PS24VDC, North America, User must Install plug end for other Countries| Part Number | Configuration | Domestic Price | ||
|---|---|---|---|---|
 | XTPC | Power Cord for PS24VDC, North America, User must Install plug end for other Countries | $50 |

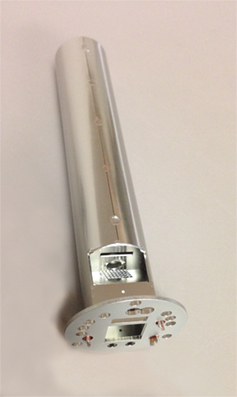

XT Frame
Frame with Faraday Detector Assembly for XTx00(M) Analyzers| Part Number | Configuration | Domestic Price | ||
|---|---|---|---|---|
 | XTFRAME | Frame with Faraday detector assembly for XT and XTP series analyzers | $500 |

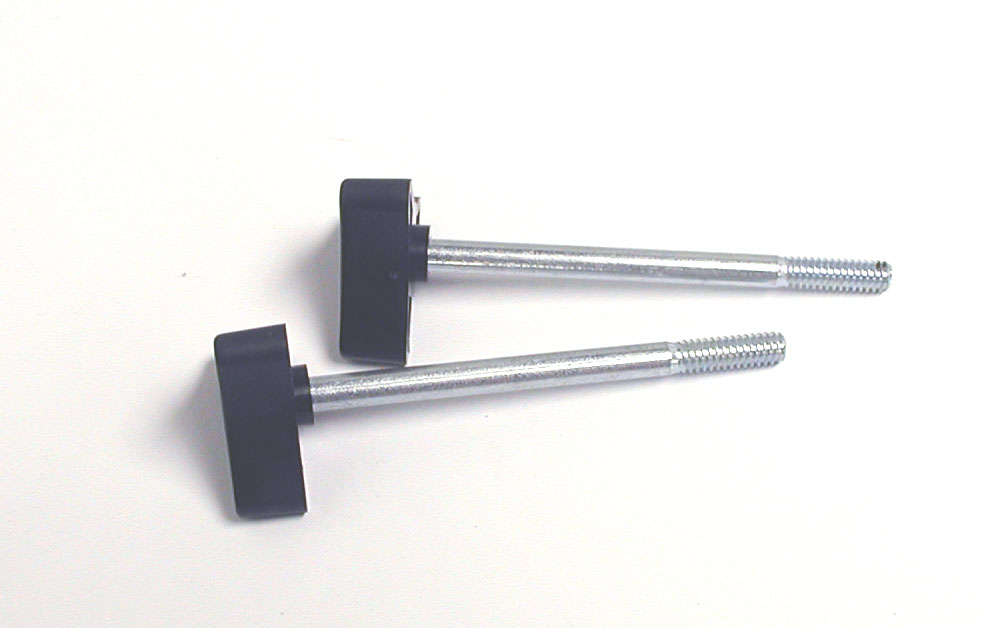

XT Thumb Screws
Thumb Screws to hold CCU to Analyzer| Part Number | Configuration | Domestic Price | ||
|---|---|---|---|---|
 | XTTS000 | Thumb screws to hold the CCU to the analyzer, XT and XTP series | $50 |
