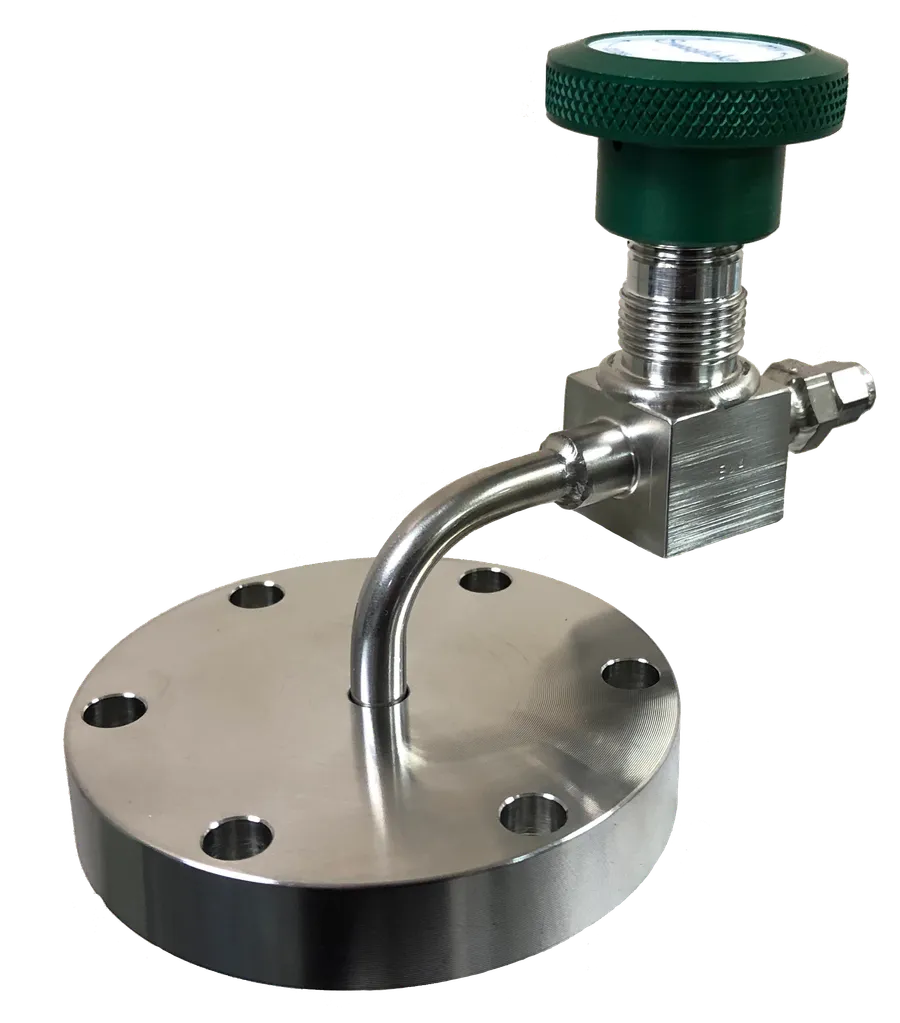

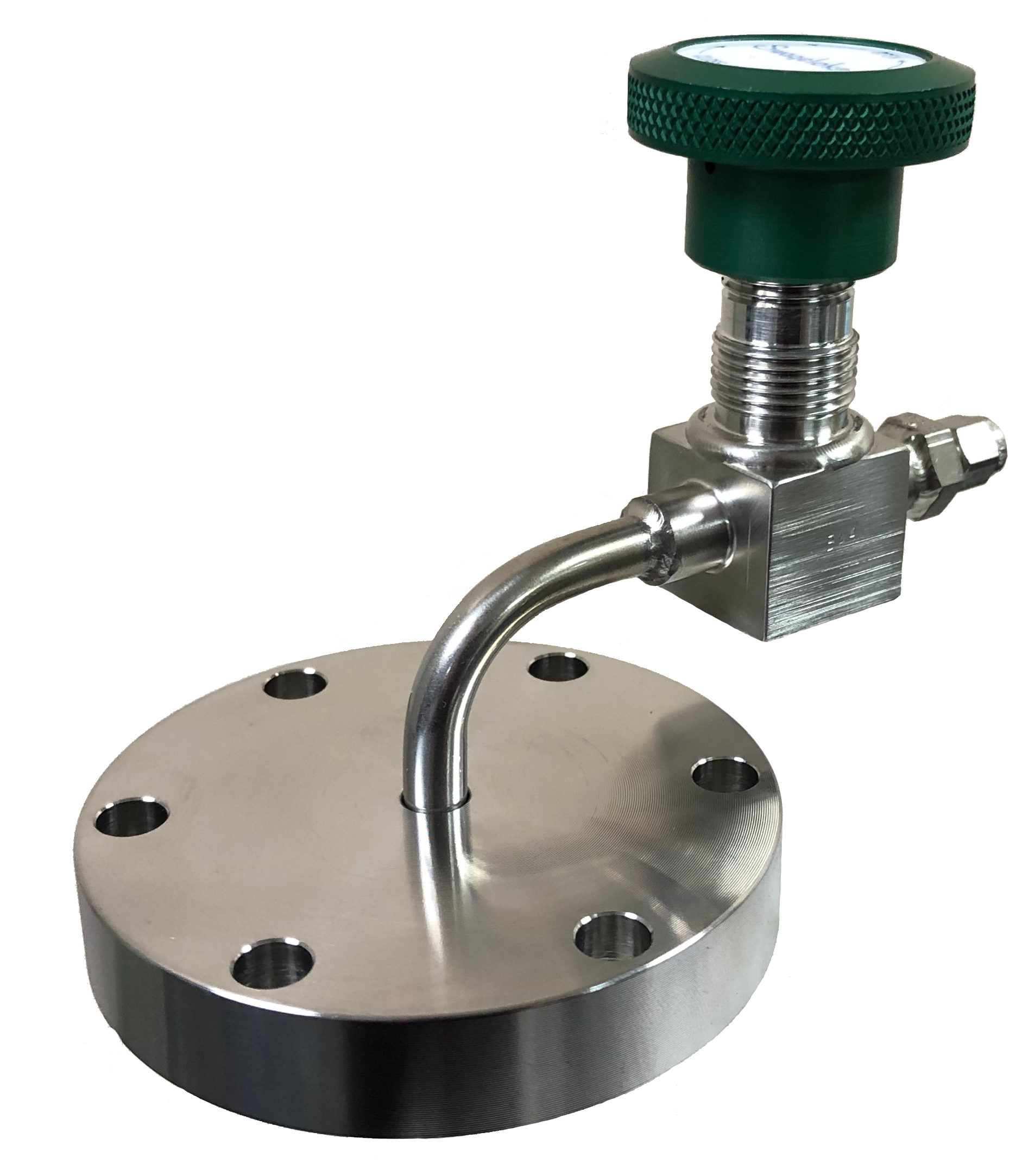

Single Valve Sampling Inlet
The Single Valve Sampling Inlet has one metal sealed on-off valve mounted on a DN 40 CF, 2 ¾ inch ConFlat (CF) flange with a Swagelok type nut and ferrule fitting for connecting the capillary tubing. The inlet assembly is made from 304 stainless steel. Stainless steel mounting hardware, and a 2 ¾ inch CF copper gasket.
Material
304 stainless steel
Inlet Flange
2 ¾ inch CF (DN 40 CF) non-rotatable
Weight
1.3 lbs
Ordering Information
Select configuration| Part Number | Configuration | Domestic Price | ||
|---|---|---|---|---|

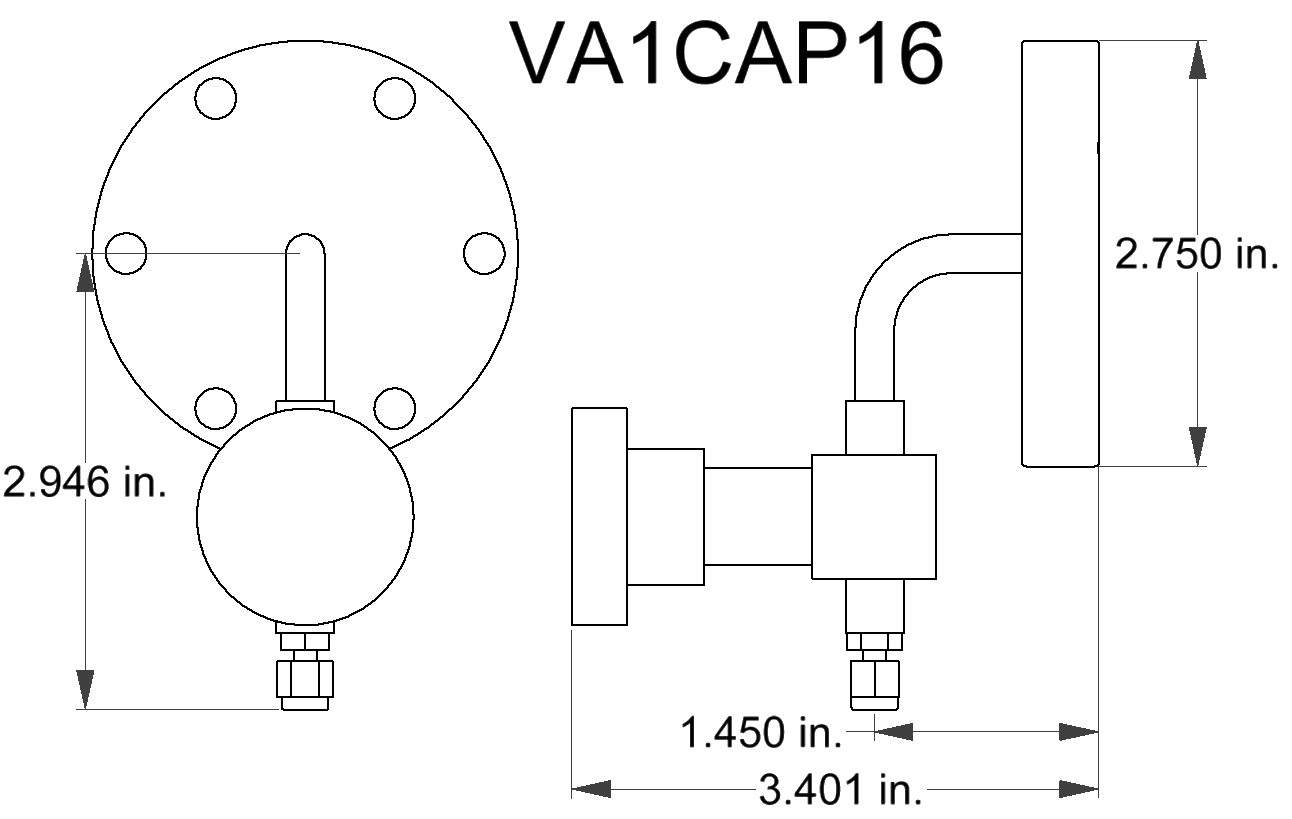

 | VA1CAP16 | Valve inlet assembly with 1/16 inch fitting; single metal sealed on-off valve mounted on a 2 ¾ inch CF flange (DN 40 CF), vespel/graphite ferrule, and capillary plug | $750 | |
| VA1CAP8 | Valve inlet assembly with 1/8 inch fitting; single metal sealed on-off valve mounted on a 2 ¾ inch CF flange (DN 40 CF), vespel/graphite ferrule, and capillary plug | $750 | ||
| VA1CAP4 | Valve inlet assembly with 1/4 inch fitting; single metal sealed on-off valve mounted on a 2 ¾ inch CF flange (DN 40 CF), vespel/graphite ferrule, and capillary plug | $750 | ||
| VA1CAP3 | Valve inlet assembly with 3/16 inch fitting; single metal sealed on-off valve mounted on a 2 ¾ inch CF flange (DN 40 CF), vespel/graphite ferrule, and capillary plug | $750 |
Specifications
Specifications
Material
304 stainless steel
Inlet Flange
2 ¾ inch CF (DN 40 CF) non-rotatable
Weight
1.3 lbs
Hardware Supplied
6 pcs ¼ -28 x 1.5 inch stainless steel bolts, nuts, flat washers, and 1 x 2 ¾ inch CF copper gasket.
Stainless steel swagelok type nut and ferrule – for use with stainless steel capillary tubing.
1/16 inch fittings come with an additional vespel/graphite ferrule as well as a capillary plug – for use with glass capillary tubing.
Inlet Valve
Metal sealed
Capillary Fitting
Swagelok type nut and ferrule
