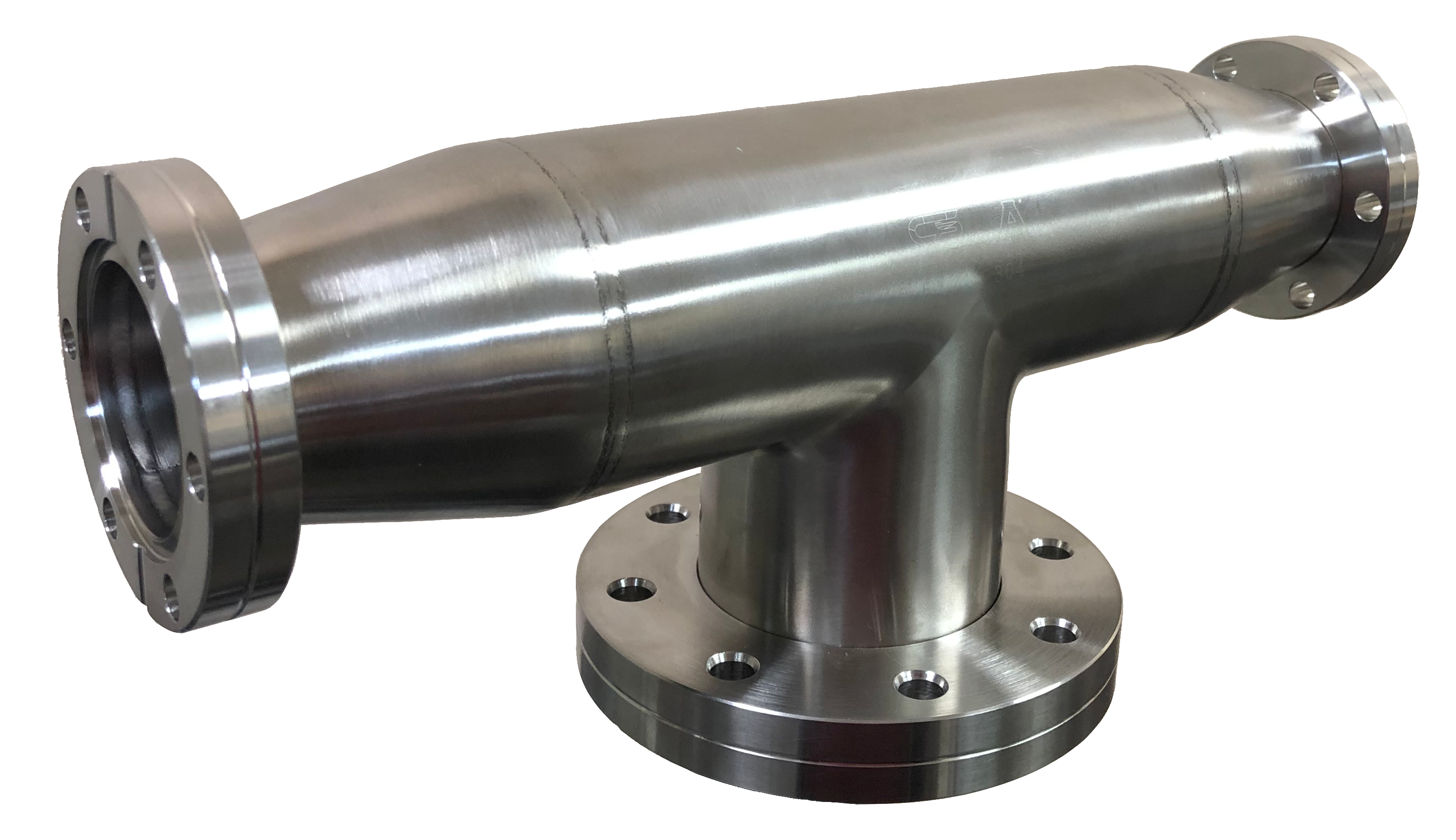

XT Series Probe Manifolds are high conductance vacuum tees for connecting a gas inlet valve and an Extorr quadrupole probe to a high vacuum pump. The manifolds maintain a high pumping speed to the RGA for less background gas interference. All manifolds are made from 304 stainless steel and have 2 x 2.75-inch (DN 40 CF) ConFlat (CF) flanges for the RGA Probe and inlet. XT Probe Manifold pump flanges are available to fit most turbomolecular vacuum pumps. Stainless steel mounting hardware and copper gaskets for the CF flanges are included with the XT Probe Manifold.
Material
304 stainless steel
RGA and Inlet Flanges
2 X 2 ¾ inch CF (DN 40 CF) non-rotatable
Weight
5 lbs
Resources
Ordering Information
Select configuration| Part Number | Configuration | Domestic Price | ||
|---|---|---|---|---|
 | MAN450C | Probe manifold with 2 x 2 ¾ inch CF flanges (DN 40 CF) and 4.50 inch CF flange (DN 63 CF) for pump, mounting hardware, and CF copper gasket (for 2 ¾ inch CF flange) | $700 | |
 | MAN63S | Probe manifold with 2 x 2 ¾ inch CF flanges (DN 40 CF) for inlet probe, 63 ISO flange for pump, mounting hardware, and CF copper gasket (for 2.75 inch CF flange) | $700 | |
| MAN40K | Probe manifold with 2 x 2 ¾ inch CF flanges (DN 40 CF) and DN 40 KF for pump, mounting hardware, and CF copper gasket (for 2.75 inch CF flange) | $700 |
Specifications
Specifications
Material
304 stainless steel
Mounting Hardware Supplied (all models)
12 pcs. ¼-28 x 1.50 inch SS bolts, nuts, flat washers, 2 x 2 ¾ inch CF copper gaskets
Weight
5 lbs
RGA and Inlet Flanges
2 X 2 ¾ inch CF (DN 40 CF) non-rotatable

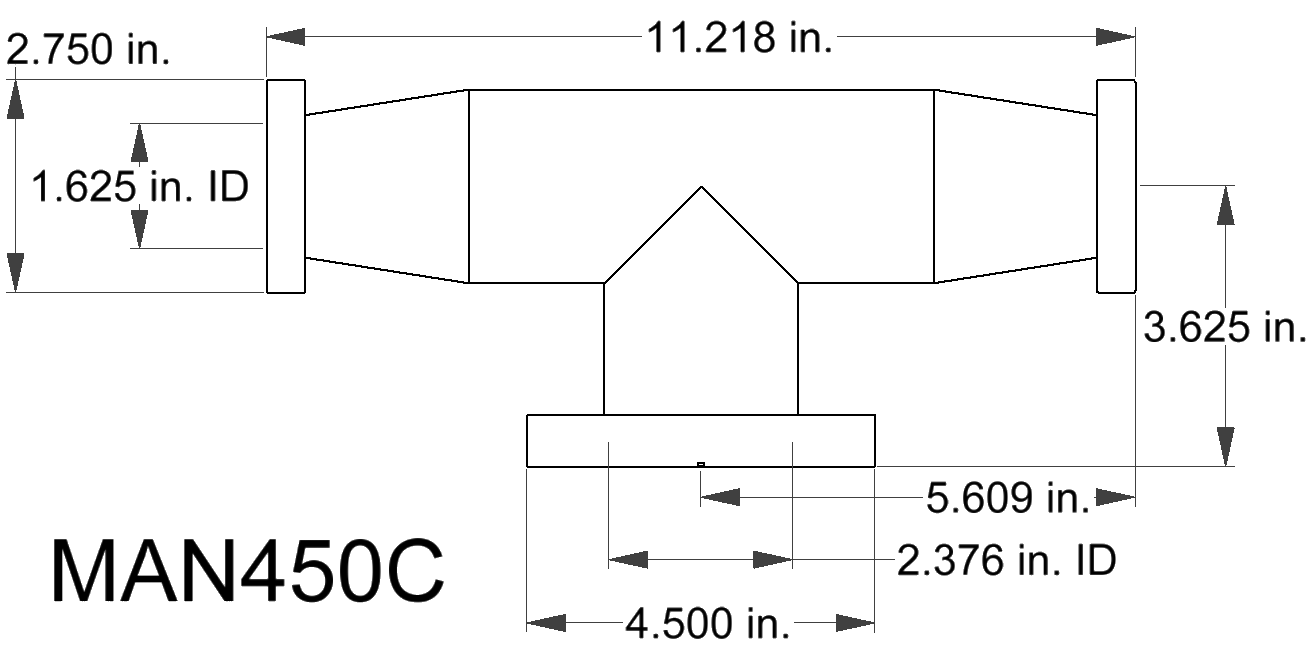

MAN450C - Pump Flange, Extra Hardware
4.50 inch CF (DN 63 CF) non-rotatable flange, 6 pcs ¼ -28 x 1.5 inch SS bolts, nuts, flat washers, and 4.50 inch (DN 63 CF) copper gasket

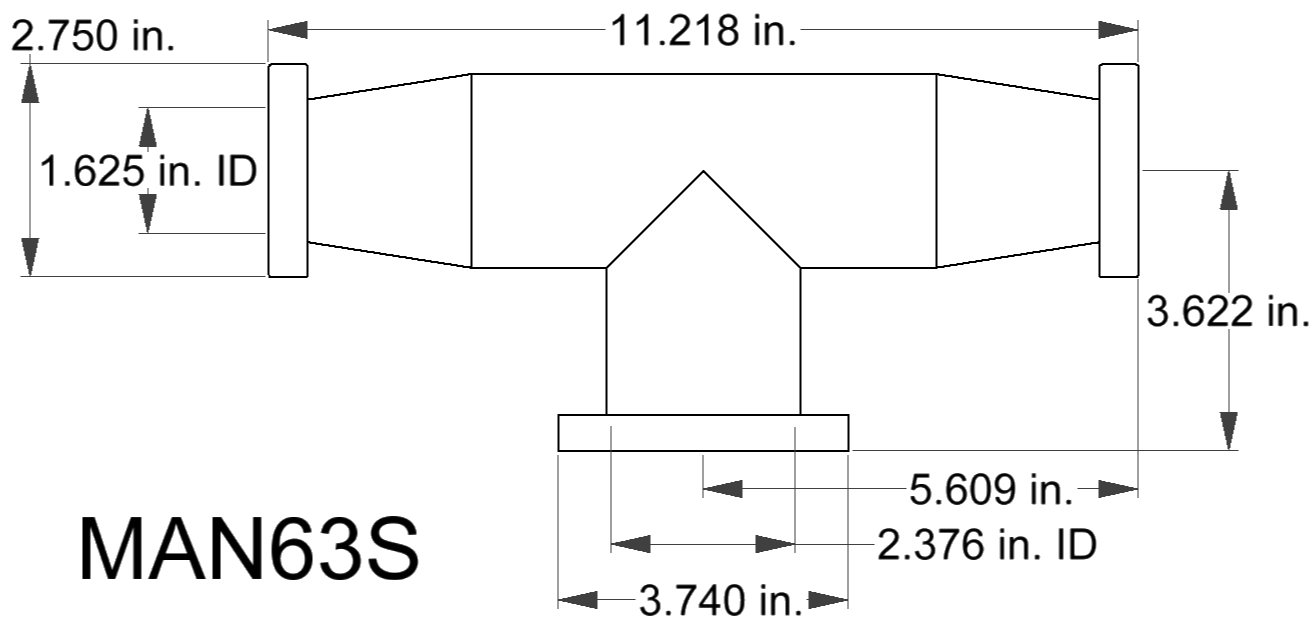

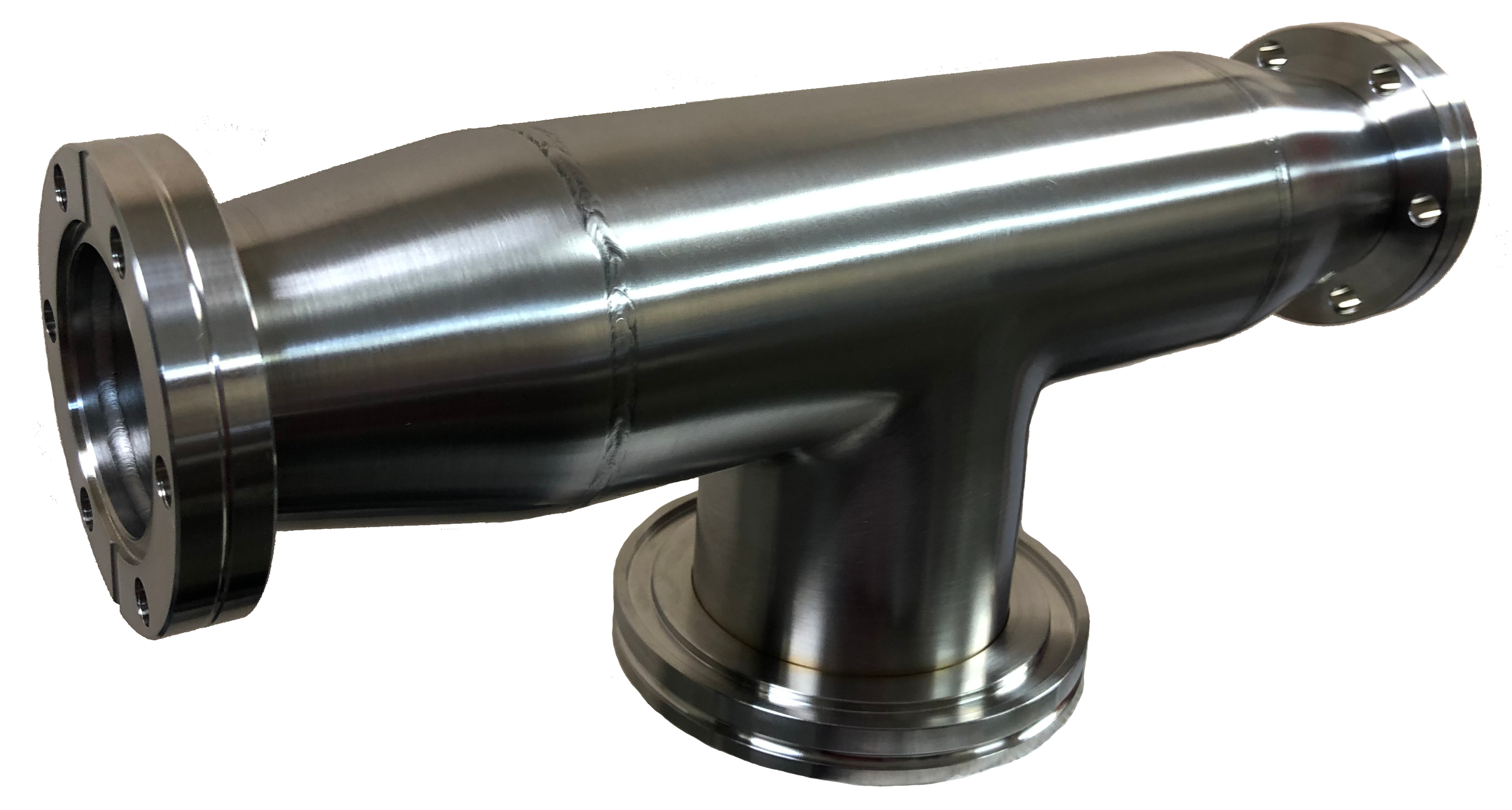

MAN63S - Pump Flange, Extra Hardware
ISO 63 flange with elastomer o-ring and mounting bolts
MAN40K - Pump Flange, Extra Hardware
DN 40 KF flange with elastomer o-ring and mounting bolts
