Series

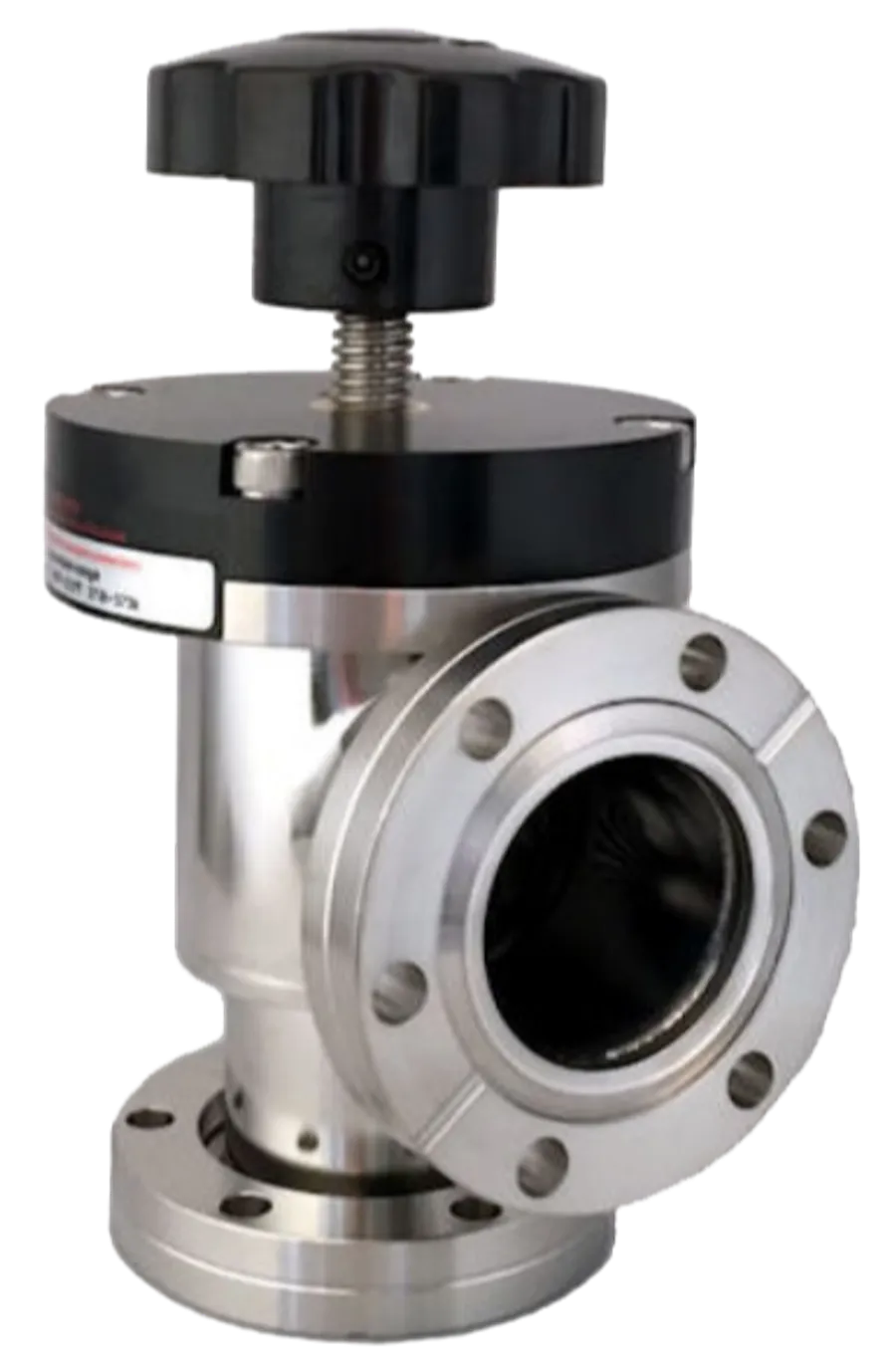

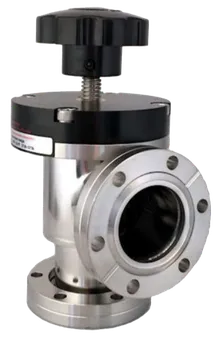

High Conductance Right Angle Valve
Vacuum valve for use with Extorr vacuum parts and in other vacuum systems and applications.

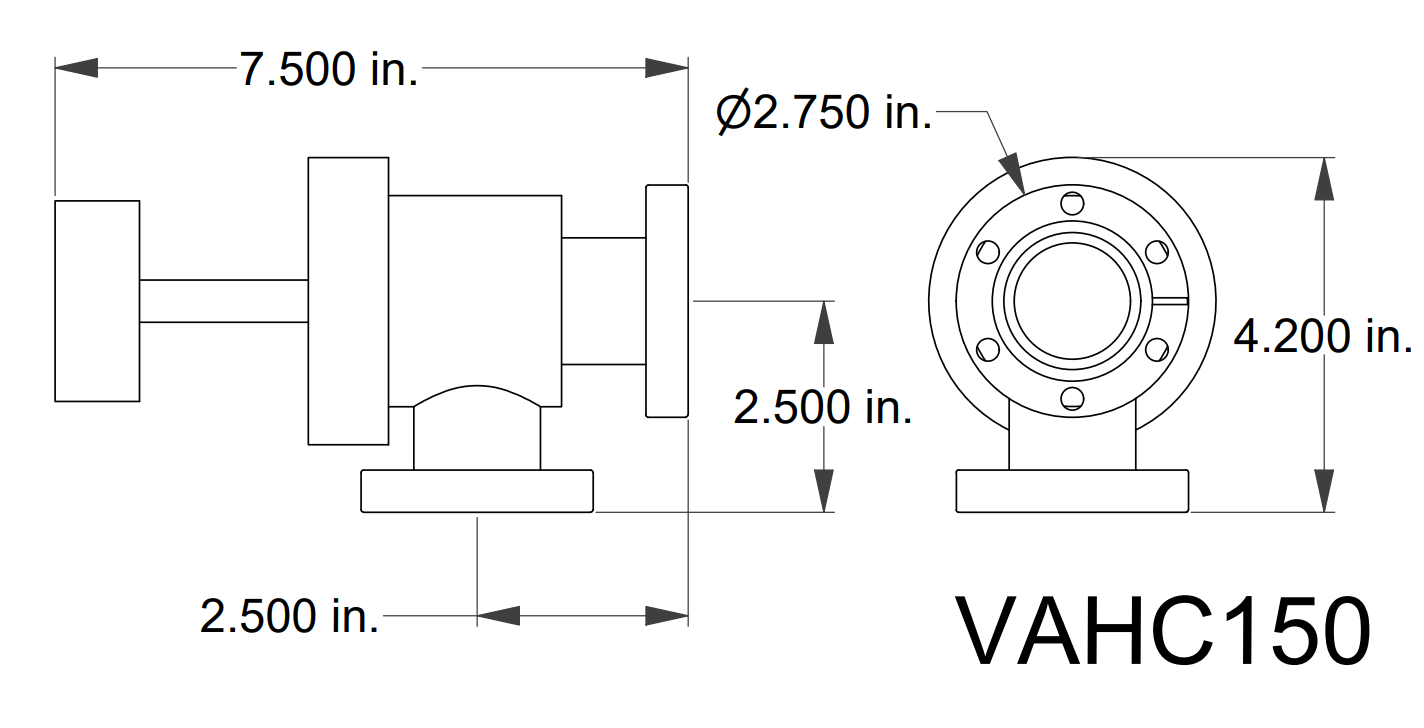

Flange Dimensions
2-3/4 in. OD ConFlat Flange, 1.5 in. Tube OD
Max Temperature Rating
Bakeable to 150 °C
Ordering Information
Select configuration| Part Number | Configuration | Domestic Price | ||
|---|---|---|---|---|
 | VAHC150 | Vacuum valve for use with Extorr vacuum parts and in other vacuum systems and applications. | $700 |
Specifications
Specifications
Flange Dimensions
2-3/4 in. OD ConFlat Flange, 1.5 in. Tube OD
Max Temperature Rating
Bakeable to 150 °C
