Series

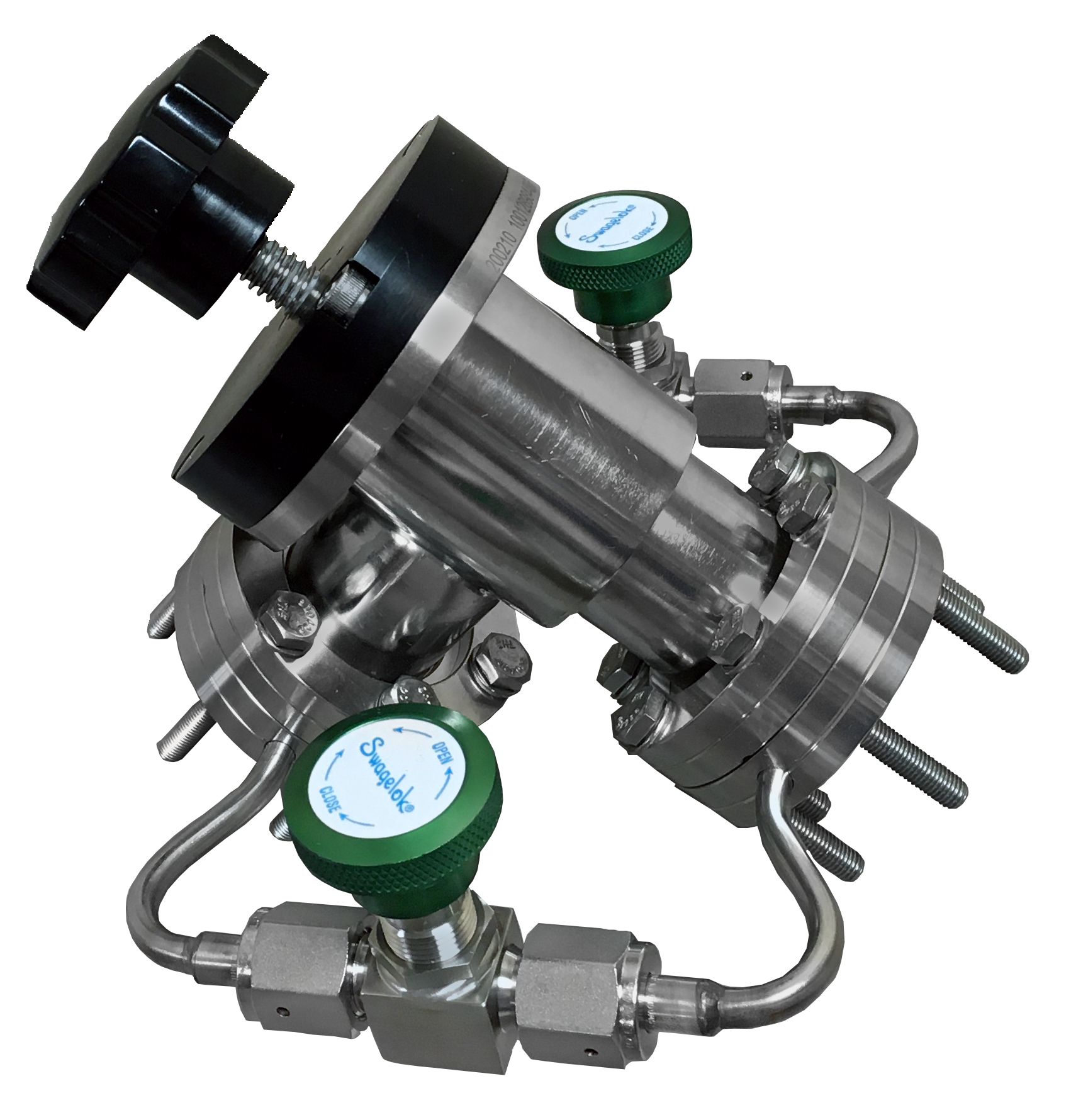

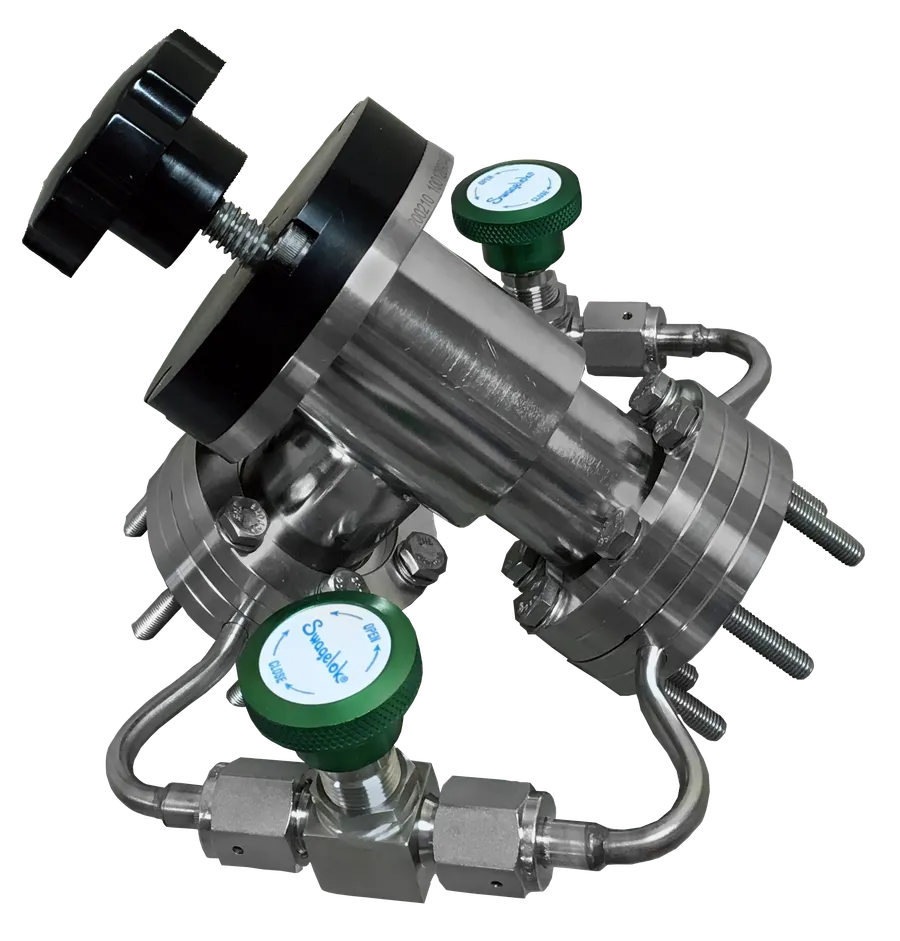

High Conductance Valve with Pressure Reduction Bypass(es)
The High Conductance Valve, built from 304 stainless steel, offers one or two pressure reduction bypasses, each featuring a Swagelok bypass valve and flow control orifice. It ensures an effective seal with an Elastomer poppet and offers versatile connections for different chamber pressures. The unit comes with all required hardware and is leak-tested prior to assembly.
Material
304 Stainless Steel
Weight
6 lbs.
Max Temperature Rating
Bakeable to 150 °C
Ordering Information

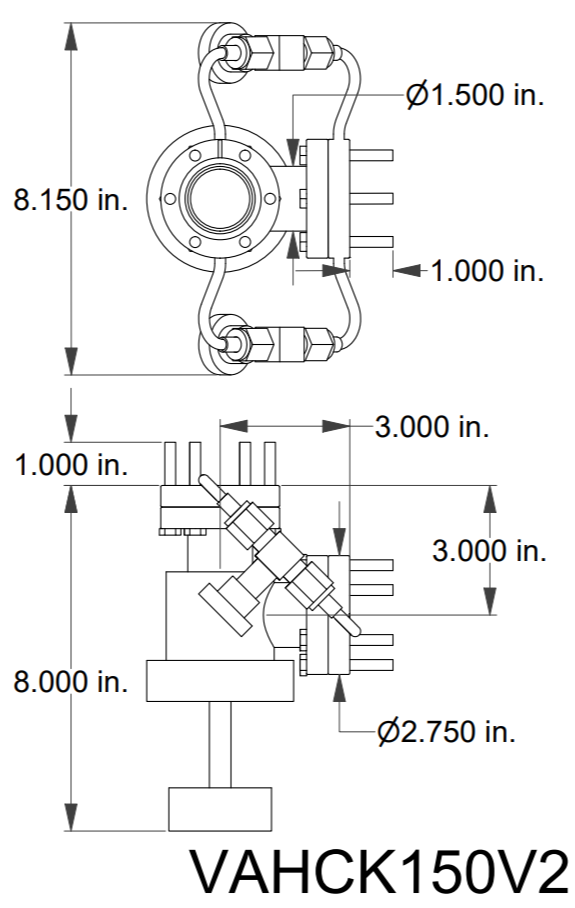

Select configuration| Part Number | Configuration | Domestic Price | ||
|---|---|---|---|---|
| VAHCK150V1 | High Conductance Valve with 1 Bellows-Sealed Swagelok Bypass valve, and 2 ConFlat to VCR adapters with 2 arms each (one arm plugged), twelve ¼-28 nuts and washers, 1 flow control orifice for Bypass Valve, and 2 copper gaskets | $2,050 | ||
 | VAHCK150V2 | High Conductance Valve with 2 Bellows-Sealed Swagelok Bypass valves, and 2 ConFlat to VCR adapters with 2 arms each, twelve ¼-28 nuts and washers, 2 flow control orifices for Bypass Valves, and 2 copper gaskets | $2,550 |
Specifications
Specifications
Material
304 Stainless Steel
Weight
6 lbs.
Max Temperature Rating
Bakeable to 150 °C
High Conductance Valve
Elastomer O-ring seal
Flange Dimensions
2-3/4 in. OD ConFlat Flange, 1.5 in. Tube OD
Swagelok Valve Connection Size
¼ inch VCR with flow control orifice sized to the customer’s request
