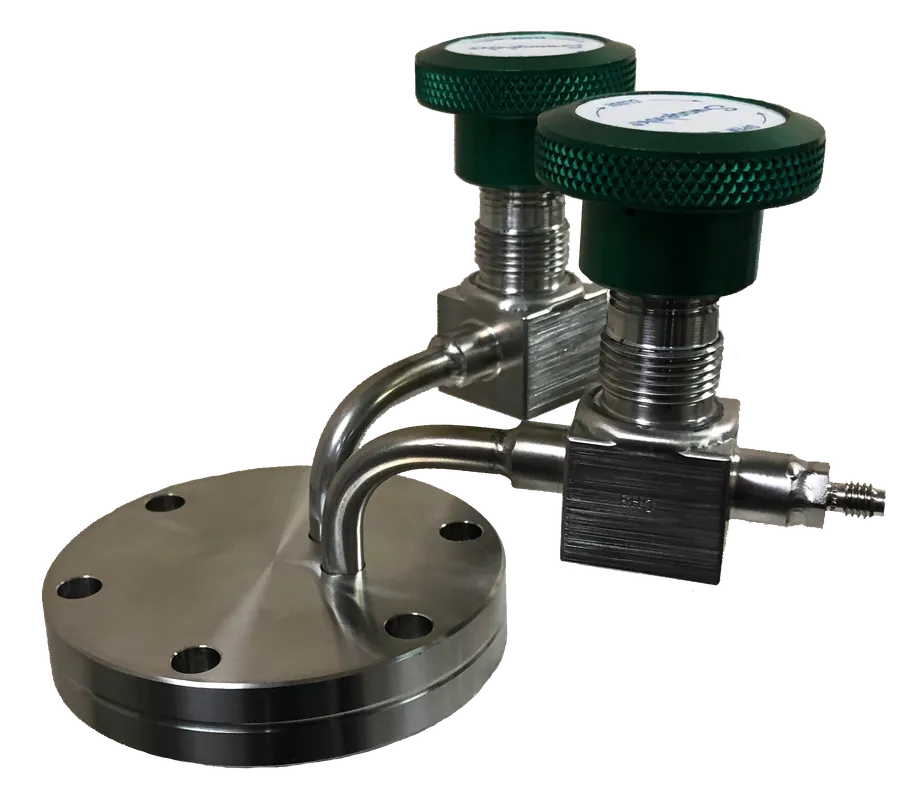

Double Valve Sampling Inlet

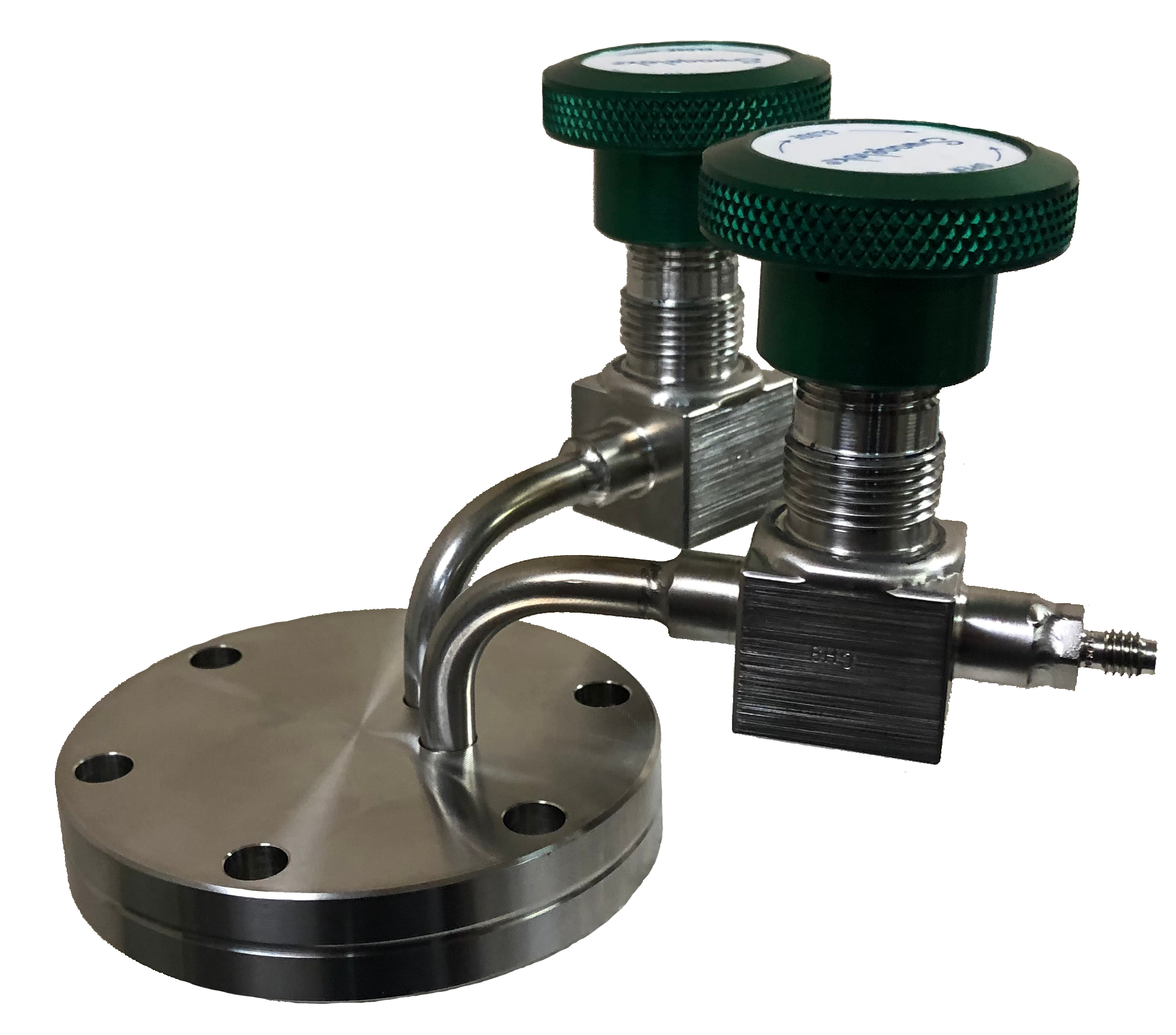

The Double Valve Sampling Inlet has two metal sealed on-off valves mounted on a DN 40 CF, 2 ¾ inch ConFlat (CF) flange with Swagelok type nuts and ferrule fittings for connecting to capillary tubing. The inlet assembly is made from 304 stainless steel, and the fittings come in 1/16 inch, 1/8 inch, 3/16 inch, and 1/4 inch ID options. One or both of the fittings can be a specific ID. Stainless steel mounting hardware, as well as a 2 ¾ inch CF copper gasket are included.
Material
304 stainless steel
Inlet Flange
2 ¾ inch CF (DN 40 CF non-rotatable)
Weight
1.5 lbs
Ordering Information
Select configuration| Part Number | Configuration | Domestic Price | ||
|---|---|---|---|---|

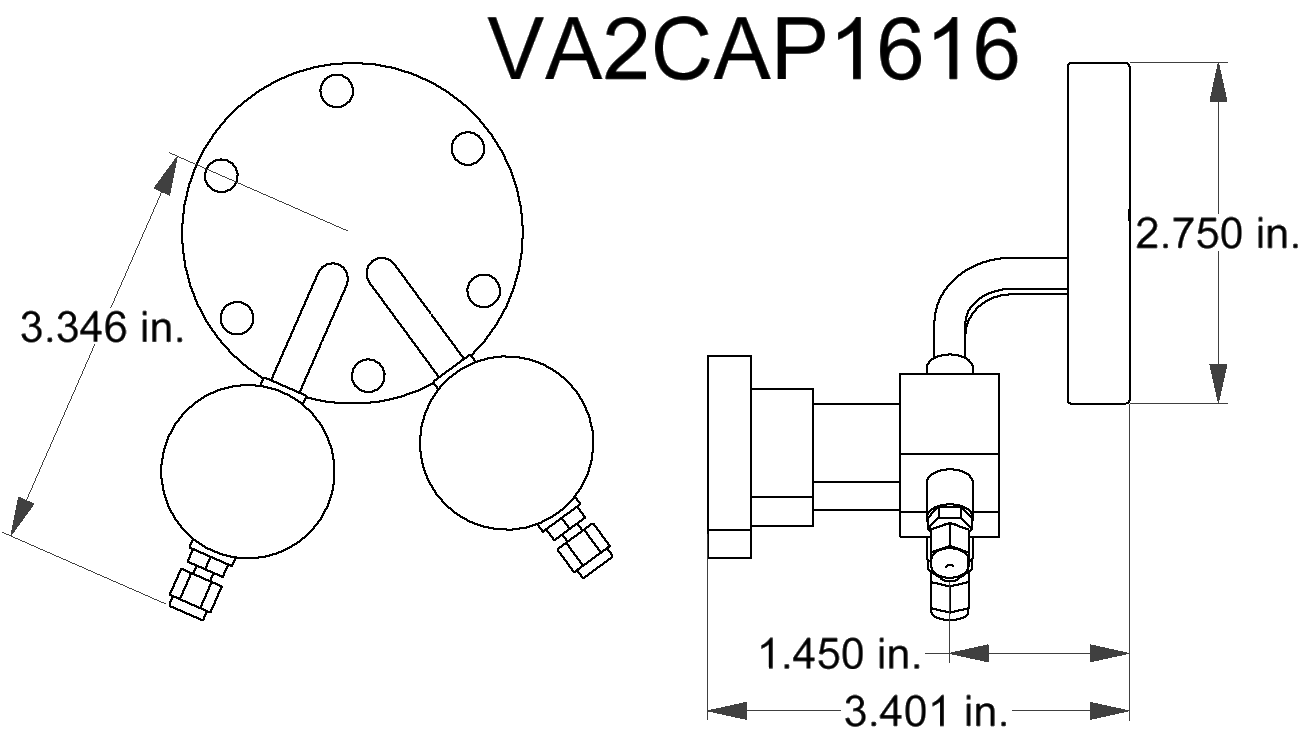

 | VA2CAP1616 | Valve inlet assembly with 2 x 1/16 inch fittings; 2 metal sealed on-off valves mounted on 2 ¾ inch CF flange (DN 40 CF) | $1,050 | |
| VA2CAP168 | Valve inlet assembly with 1/16 inch fitting and 1/8 inch fitting; 2 metal sealed on-off valves mounted on 2 ¾ inch CF flange (DN 40 CF) | $1,050 | ||
| VA2CAP164 | Valve inlet assembly with 1/16 inch fitting and 1/4 inch fitting; 2 metal sealed on-off valves mounted on 2 ¾ inch CF flange (DN 40 CF) | $1,050 | ||
| VA2CAP163 | Valve inlet assembly with 1/16 inch fitting and 3/16 inch fitting; 2 metal sealed on-off valves mounted on 2 ¾ inch CF flange (DN 40 CF) | $1,050 | ||
| VA2CAP88 | Valve inlet assembly with 2 x 1/8 inch fitting; 2 metal sealed on-off valves mounted on 2 ¾ inch CF flange (DN 40 CF) | $1,050 | ||
| VA2CAP84 | Valve inlet assembly with 1/8 inch fitting and 1/4 inch fitting; 2 metal sealed on-off valves mounted on 2 ¾ inch CF flange (DN 40 CF) | $1,050 | ||
| VA2CAP83 | Valve inlet assembly with 1/8 inch fitting and 3/16 inch fitting; 2 metal sealed on-off valves mounted on 2 ¾ inch CF flange (DN 40 CF) | $1,050 | ||
| VA2CAP44 | Valve inlet assembly with 2 x 1/4 inch fitting; 2 metal sealed on-off valves mounted on 2 ¾ inch CF flange (DN 40 CF) | $1,050 | ||
| VA2CAP43 | Valve inlet assembly with 1/4 inch fitting and 3/16 inch fitting; 2 metal sealed on-off valves mounted on 2 ¾ inch CF flange (DN 40 CF) | $1,050 | ||
| VA2CAP33 | Valve inlet assembly with 2 x 3/16 inch fittings, 2 metal sealed on-off valves mounted on 2 ¾ inch CF flange (DN 40 CF) | $1,050 |
Specifications
Specifications
Material
304 stainless steel
Inlet Flange
2 ¾ inch CF (DN 40 CF non-rotatable)
Weight
1.5 lbs
Hardware Supplied
6 pcs; ¼ - 28 x 1.5 inch stainless steel bolts, nuts, flat washers, and a 2 ¾ inch CF copper gasket.
Stainless steel swagelok type nut and ferrule – for use with stainless steel capillary tubing.
1/16 inch fittings come with an additional vespel/graphite ferrule as well as a capillary plug – for use with glass capillary tubing.
Inlet Valve
Metal sealed
Capillary Fitting
Swagelok type nut and ferrule
