Capillary Tubing
Glass or stainless steel capillary tubing connects the Extorr Build-Your-Own Mass Spectrometer to a separate chamber or gas container from which gas will flow to the RGA for analysis. Capillary tubing is available in various lengths, OD, and ID specifications. In addition to the capillary tubing, all capillary tubing orders come with vespel/graphite ferrules or stainless steel ferrules. Orders also ship with capillary plugs if appropriate.
Resources
Ordering Information
Select configuration| Part Number | Configuration | Domestic Price | ||
|---|---|---|---|---|

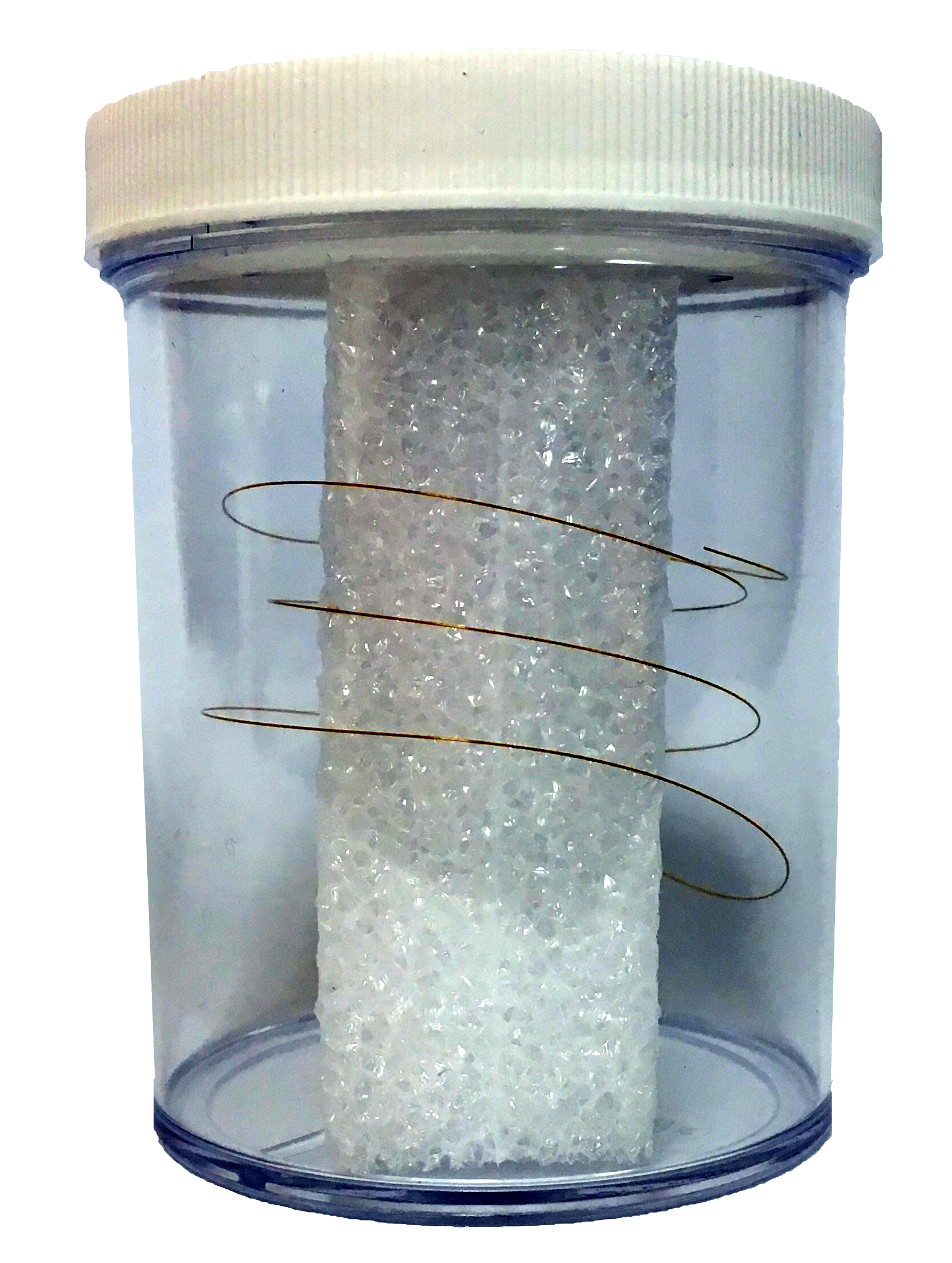

 | CGSD25SDM1 | Material: silica glass, OD: 120 µm, ID: 25 µm, Length: 1 meter | $225 | |
| CGSD40SDM2 | Material: silica glass, OD: 240 µm, ID: 40 µm, Length: 2 meter | $225 | |
| CGSD50SDM3 | Material: silica glass, OD: 280 µm, ID: 50 µm, Length: 3 meter | $225 | |

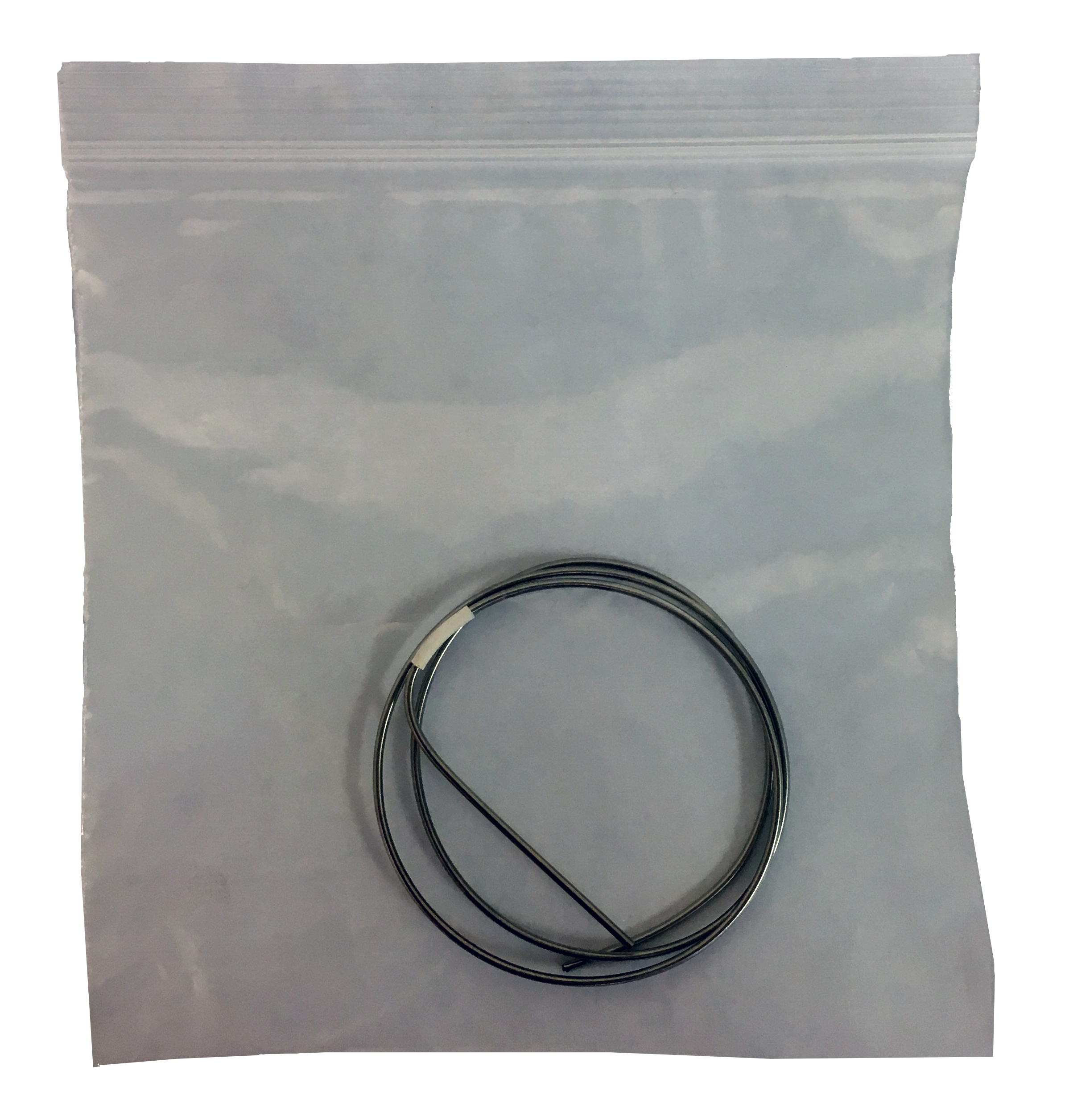

 | CS16SD5F5 | Material: 304 stainless steel, OD: 1/16 inch, ID: .00500 inch, Length: 5 feet | $250 | |
| CS16SD10F5 | Material: 304 stainless steel, OD: 1/16 inch, ID: .0100 inch, Length: 5 feet | $250 | ||
| CS16SD20F5 | Material: 304 stainless steel, OD: 1/16 inch, ID: .0200 inch, Length: 5 feet | $250 | ||
| CS16SD30F5 | Material: 304 stainless steel, OD: 1/16 inch, ID: .0300 inch, Length: 5 feet | $250 | ||
| CS8SD69F6 | Material: 304 stainless steel, OD: 1/8 inch, ID: .0690 inch, Length: 6 feet | $250 | ||
| CS4SD120F6 | Material: 304 stainless steel, OD: 3/16 inch, ID: .118 inch, Length: 6 feet | $250 | ||
| CS4SD210F6 | Material: 304 stainless steel, OD: 1/4 inch, ID: .210 inch, Length: 6 feet | $250 |
